Cadence Tutorial

This tutorial assumes that you have started up Cadence and the CIW and Library Manager window are open. If they are not, please refer to the Cadence Setup page for this procedure.

Creating Circuit Schematic

Creating New Library:

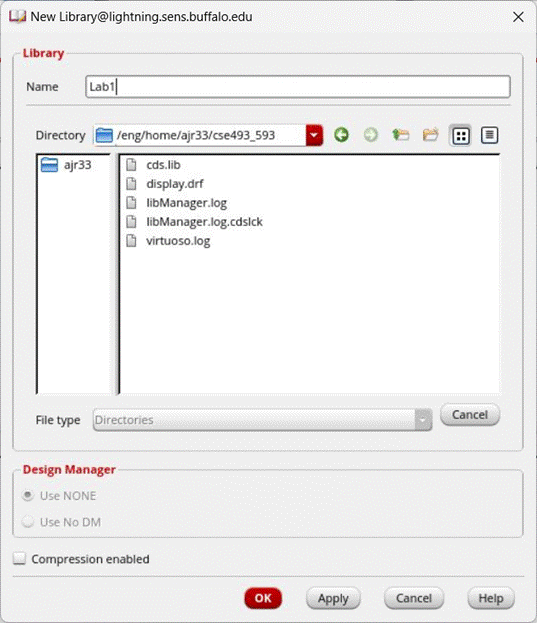

All designs related to a project are stored in a library. To create a new library from the Library Manager, click on File -> New -> Library. In the New Library window, type Lab1 as the name of the library and click OK:

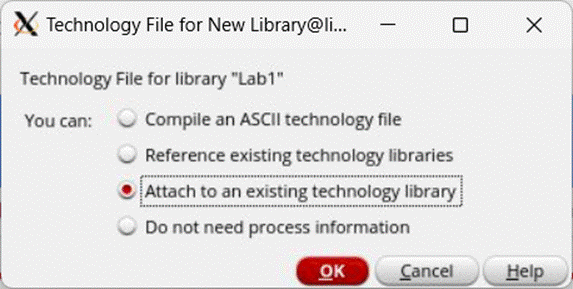

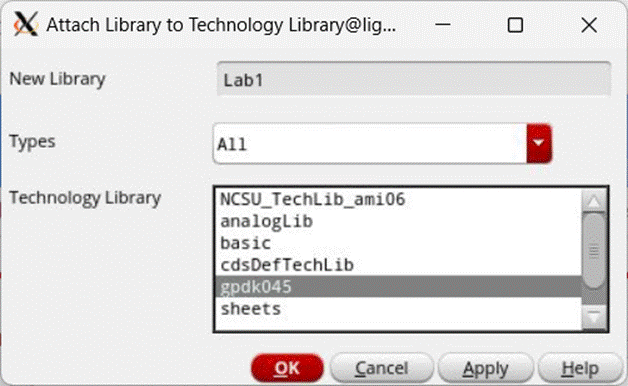

In the Technology File for New Library window, select attach to existing technology library and click OK:

In the next window, select gpdk045 and click OK:

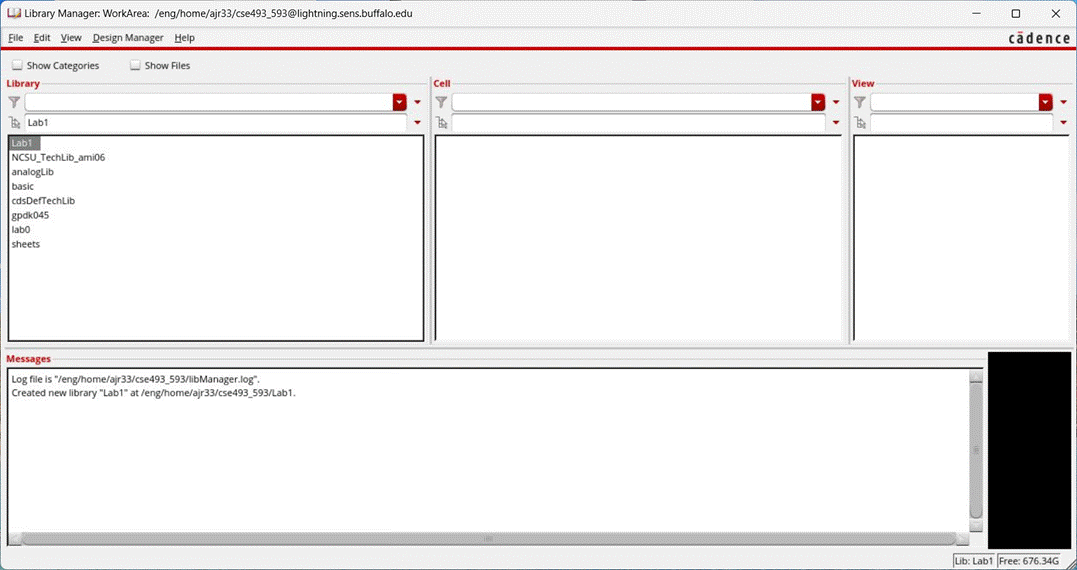

Now the library Lab1 is created.



Creating new schematic design

In the Library Manager window, click on File -> New -> Cell View

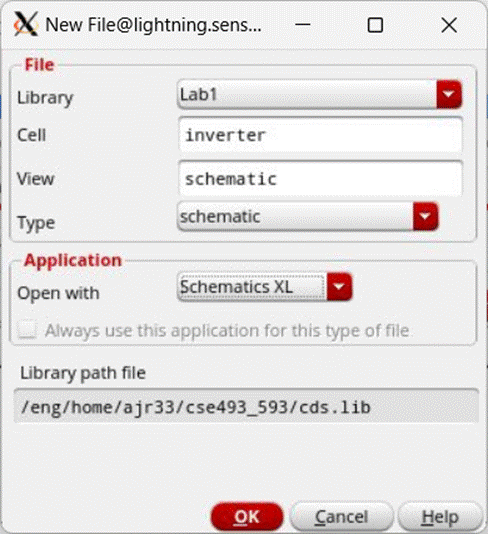

In the New File window, make sure that the library is set to Lab1

Name the cell inverter

Set type to schematic. The view should automatically be named to schematic.

Set the application to open with to Schematics XL.

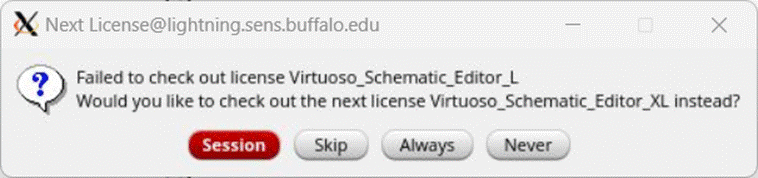

If the Next License window appears, click Session or Always. This will happen if you select Schematics L application instead.

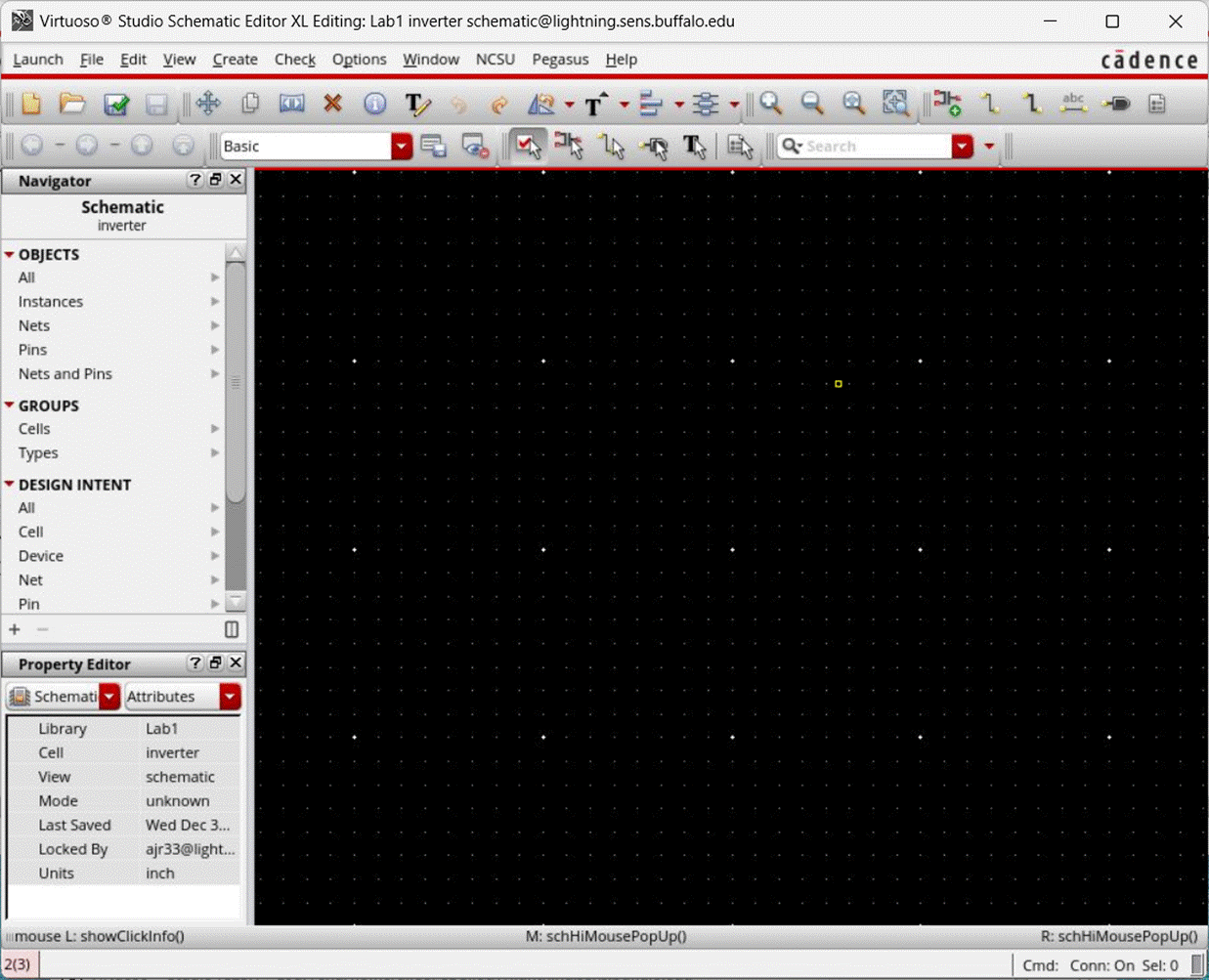

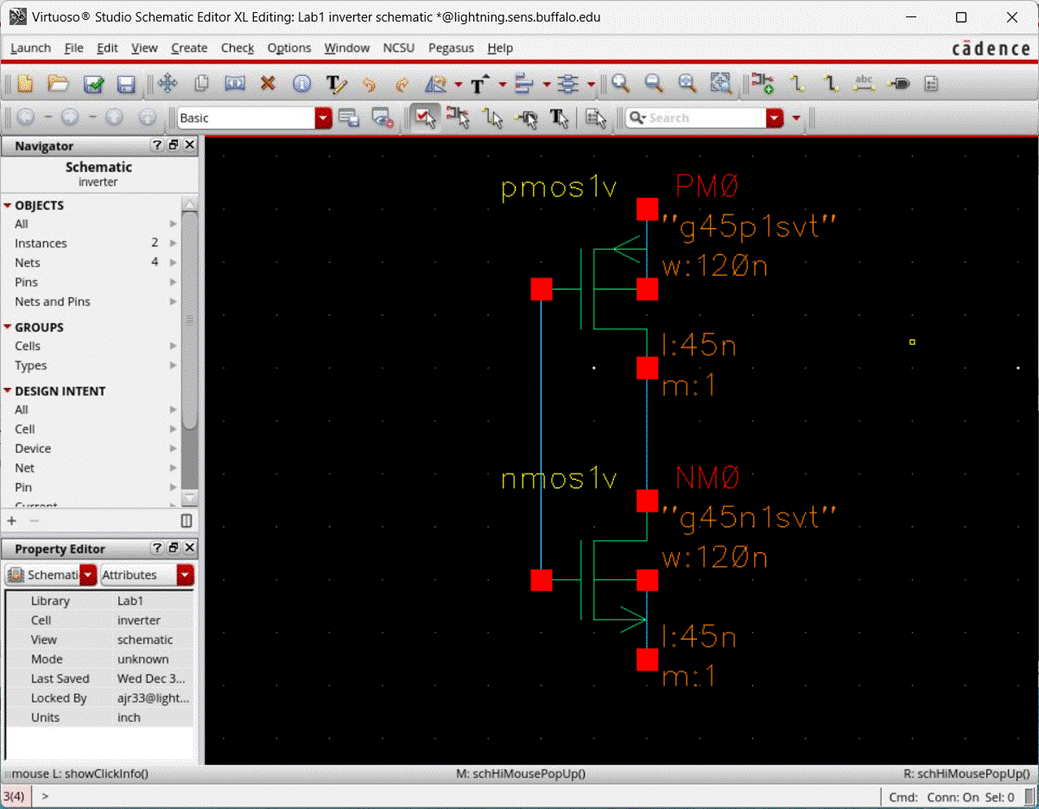

The Virtuoso Studio Schematic XL tool appears, as shown below:

At this point, you have created a library called Lab1 and a cell inside it, called inverter. Now the design process can be started. For a full custom design, the process begins by creating a schematic. Then we simulate this design to verify the correctness of its functionality. Only after this is done, is the layout of the design performed.

Here are some hot keys in the schematic composer:

• i: Add instances
• m: Move object
• q: Edit object properties (Q for editing cellview properties)
• w: Add wires
• p: Add a pin
• l: Label a wire
• z: Zoom in
• Z: Zoom out by 2X
• f: fit the schematic in your schematic window

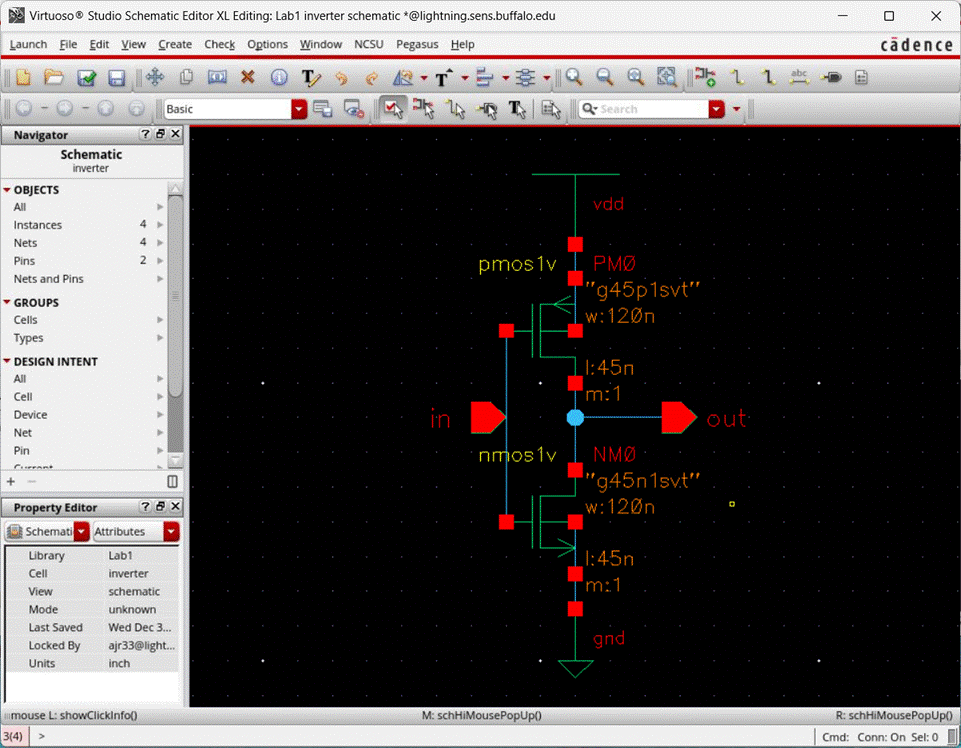

Now, we put down the design of the inverter in the Schematic Editor window. The Inverter consists of a NMOS and PMOS transistor with appropriately connected gate, drain and source terminals. The transistors and the input signal sources are instantiated and connected in the schematic editor. To instantiate a NMOS transistor :

Create Instance:

In the schematic window, click on Create->Instance (or type i). The Add instance dialogue box appears together with the Component Browser dialog box. (In case the Component Browser does not appear, click on browse in the "Add Instance" dialog box to start it.)

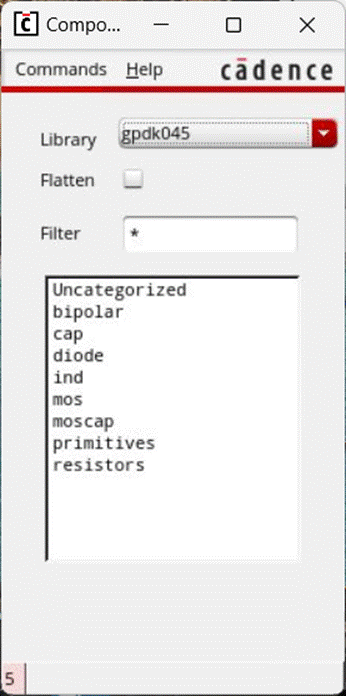

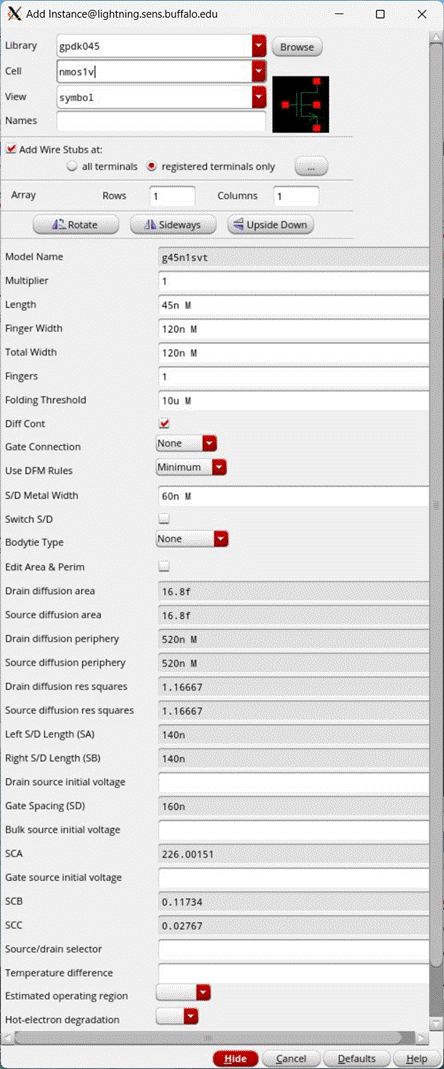

In the Component Browser window, Click on Library and choose gpdk045. Click on mos and choose nmos1v as your NMOS device. To place the instance, activate the schematic window and click the left mouse button to put the instance at the place desired.



You can also use the Add Instance window to select the device to place.

Note in Cadence Virtuoso schematic composers and layout editors, a command will not terminate unless the user cancels it, or the user starts a new command. In this case, you can see another instance is ready to be placed right after you placed the first instance. To terminate the current operation (which is "add instance" in this case), press ESC key on the keyboard. In fact, you can always cancel the current operation in schematic or layout editors by pressing ESC key.

Edit Object Properties:

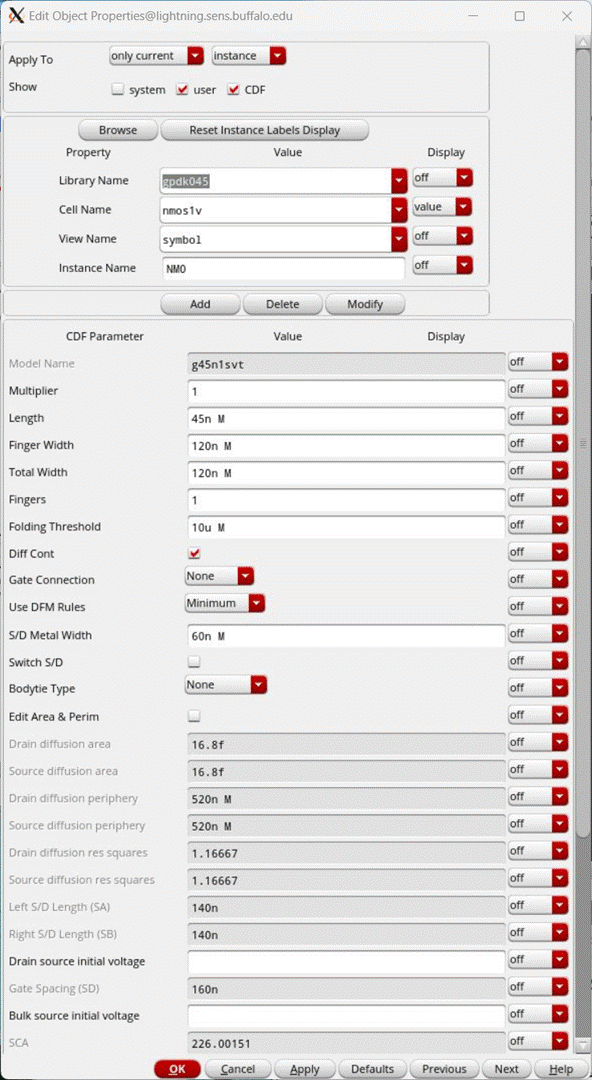

Now, we set the length and width of the NMOS transistor that is instantiated. To do this, select the object (NMOS transistor) by clicking on it and then go to Edit -> properties -> Object... (or by typing q). An object properties editing form will pop up. In this form, make the NMOS Length 45n, Finger Width 120n, Total Width 120n & Fingers 1. Select OK to save the properties.







Repeat the Create Instance procedure for a PMOS transistor using pmos1v and set its Length to 45n, Finger Width 120n, Total Width 120n & Fingers 1. The schematic should look similar to this:





Wiring up:

To connect the PMOS and NMOS devices or any electrical device, click on Create -> Wire(narrow) in the schematic window (or type w). Click at the terminal where the wire starts and click at the terminal where the wire ends, a wire will be automatically added. If you are not satisfied with the automatic wiring, you can remove the wire and reroute it manually. This time, instead of clicking at the terminal where the wire ends directly, you can click the left mouse button whenever you want to change the wire direction. If you want to stop the wire somewhere instead of connecting it to a terminal, double click your left mouse button and a dangling wire is created. In general dangling wire should be avoided, however, in some cases (like you want to label this wire or add a pin to this wire), a dangling wire makes sense.

In this case, connect the drain terminals of PMOS and NMOS, and the gate terminals of the PMOS and NMOS. Also, be sure to connect the bulk terminals of each transistor to its source. After all this wiring, the schematic should look similar to this :





Creating Supply Voltage Net (vdd/gnd) and Input/Output pins:

To connect the source terminal of PMOS to vdd, instantiate the vdd from the analogLib and place on top of the PMOS in the schematic. Similarly instantiate gnd and place on bottom of the NMOS transistor. Connect the vdd terminal with the PMOS source terminal, and the gnd with NMOS source terminal. Next, create pins for input and output. Click on "Create->Pin..." (or type p) in the schematic window, the following dialogue box would appear:

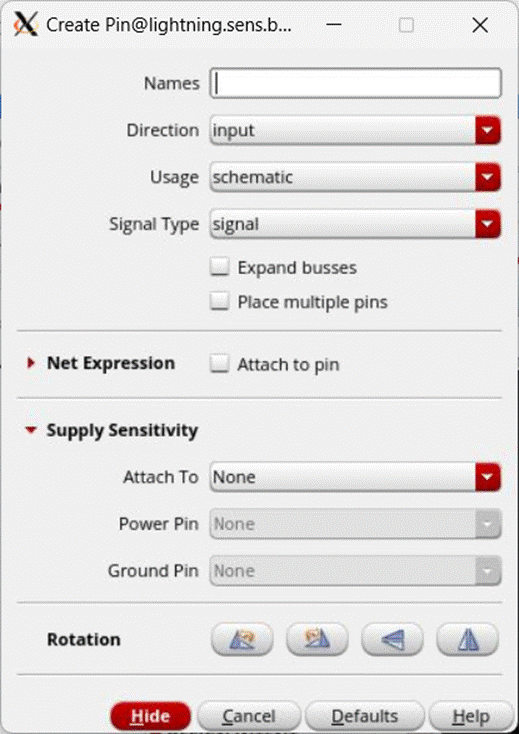

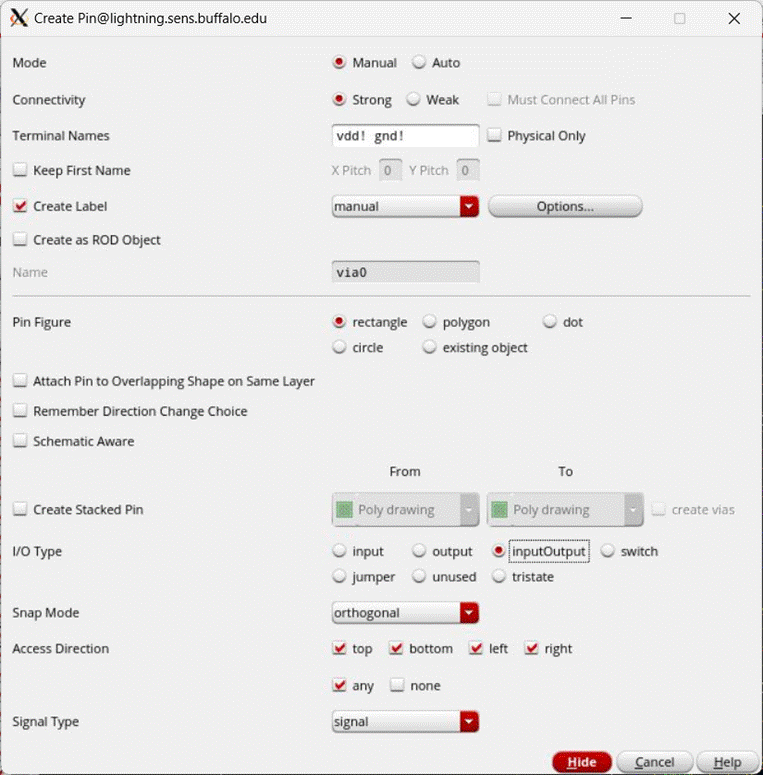

Type in as the pin name. Note that the direction is listed as input. For an output pin, you would need to change this to output. Press Enter, then in the schematic window, place the pin terminal on the wire that connects the gate terminals of the transistors. Similarly, create an out pin and set its direction as output. The out pin is placed on the wire connecting the drain terminals of the transistors. After this, the schematic should look similar to this:

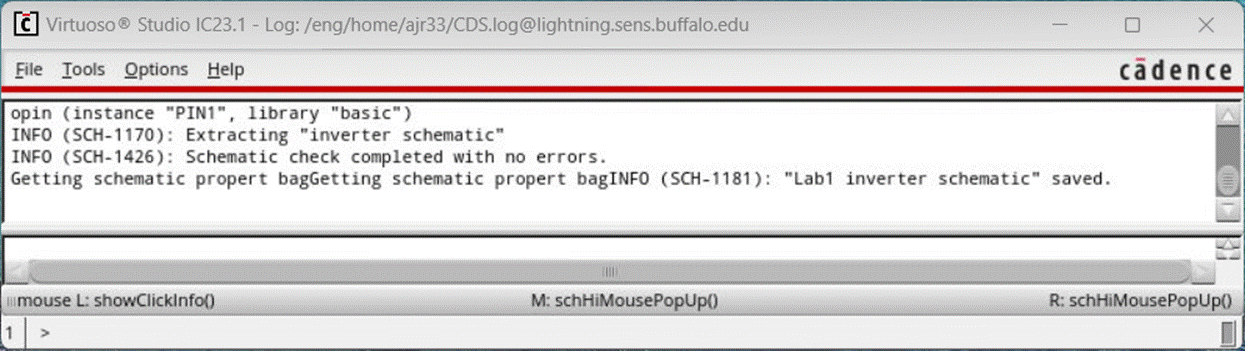

After the design has been completed, click on File -> Check and Save to check and save your designs, or use hotkey F8. Check the CIW window to see if there are any errors or warnings in your design. If there are, then fix them and repeat Check & Save.

Back to Top







Transient Simulation using ADE Explorer

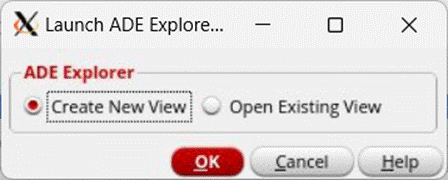

To simulate the current design, in the Virtuoso window, click on Launch->ADE Explorer. In the Launch window, choose Create New View & press OK. If you have a saved simulation already, you can use Open Existing View to view saved simulations.

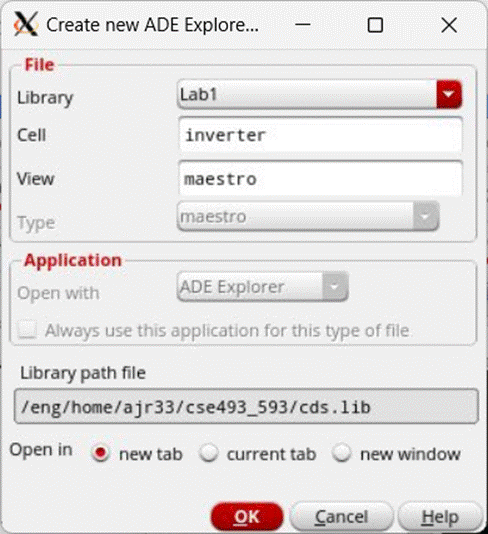

In the Create New ADE Explorer window, make sure that the Library is Lab1, cell is inverter & view is maestro.

You can specify whether you want to open the view in a new tab, current tab, or new window. Click OK to open ADE Explorer.

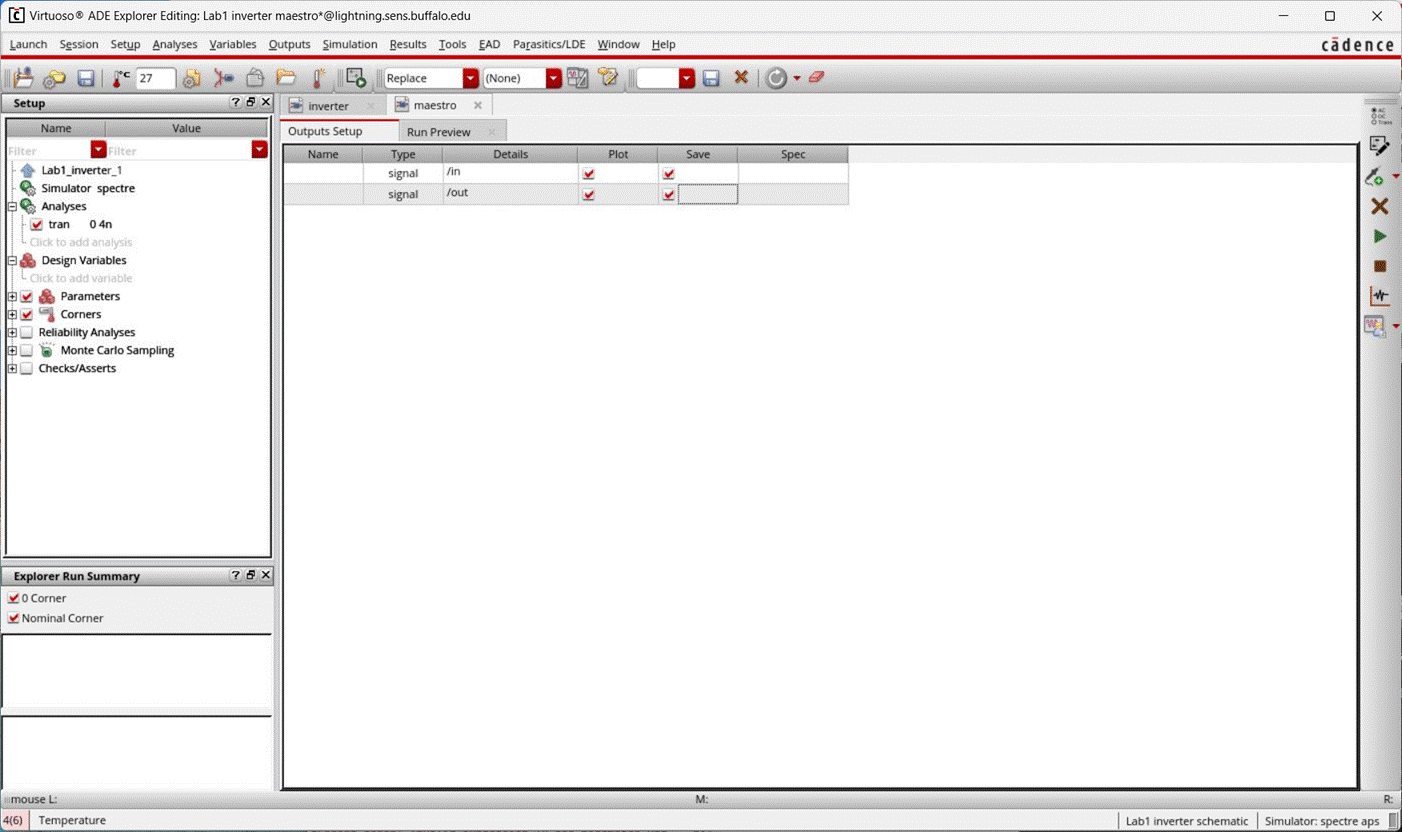

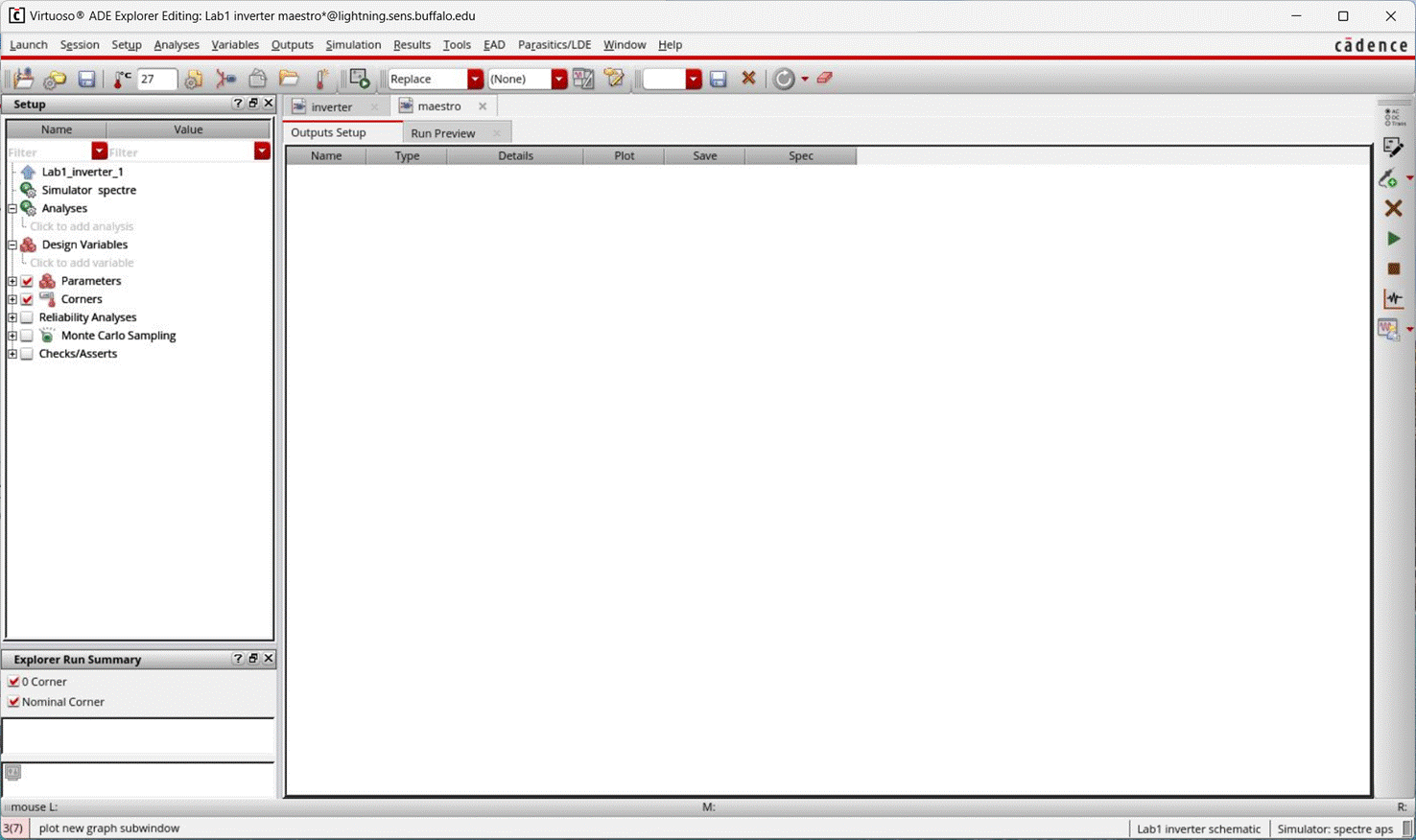

Once ADE Explorer opens, the window should look like this:





The following points have to be taken care of before the design can be simulate

·        Setup -> Simulator: specifies the simulator to use. Set the simulator to spectre. Press OK to save.

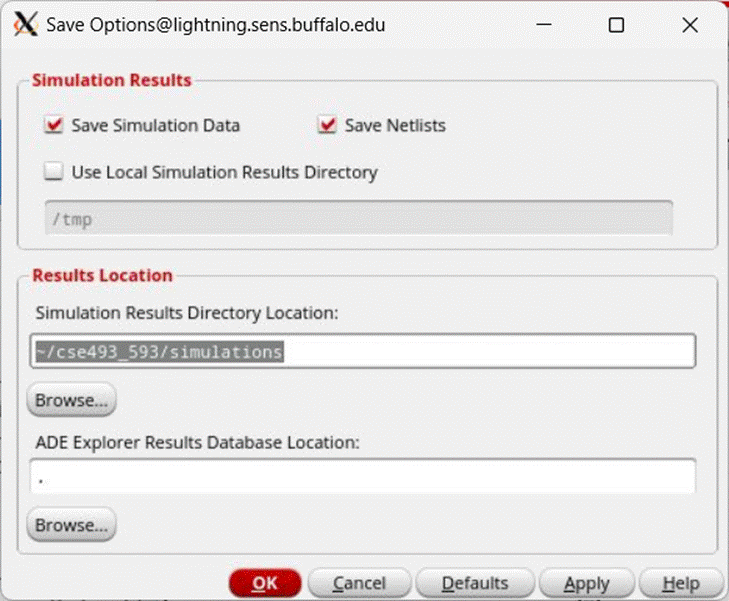

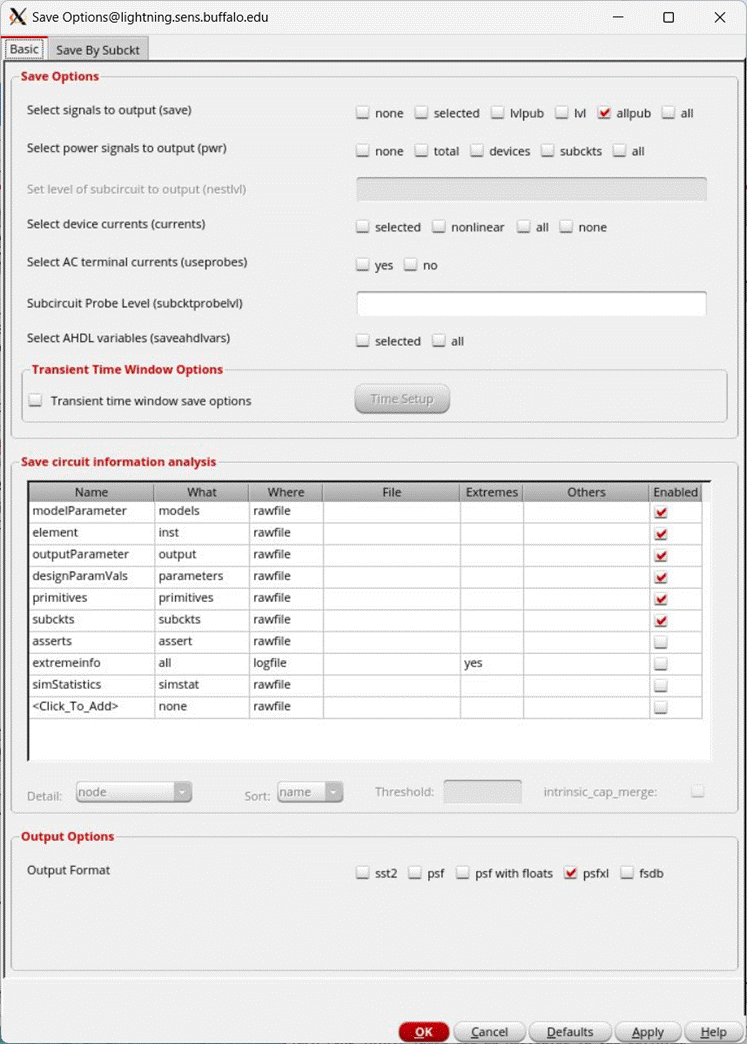

·        Setup -> Save Options: specifies what to save & where the simulation results will be stored. The simulation results will default to <home directory>/cse493_593/simulations location. Press Ok to save.

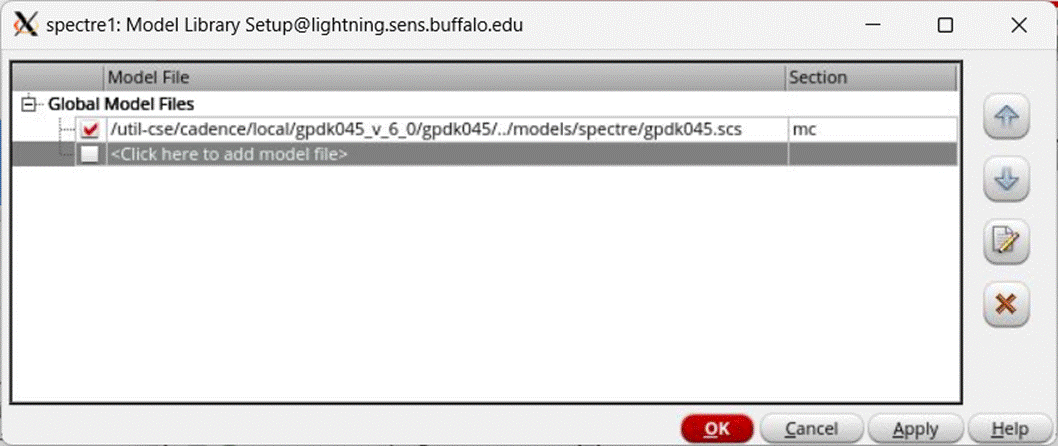

·       Setup -> Model Libraries: Specifies the path for the model files. This should be set by default, but if not set it to /util-cse/cadence/local/gpdk045_v_6_0/gpdk045/../models/spectre/gpdk045.scs

·       Set the section to use mc (Monte Carlo) & press OK to save.

• Setup -> Stimuli: Specifies the input parameters & voltages for the circuit. The Stimuli Assignment window should come up & look like this.

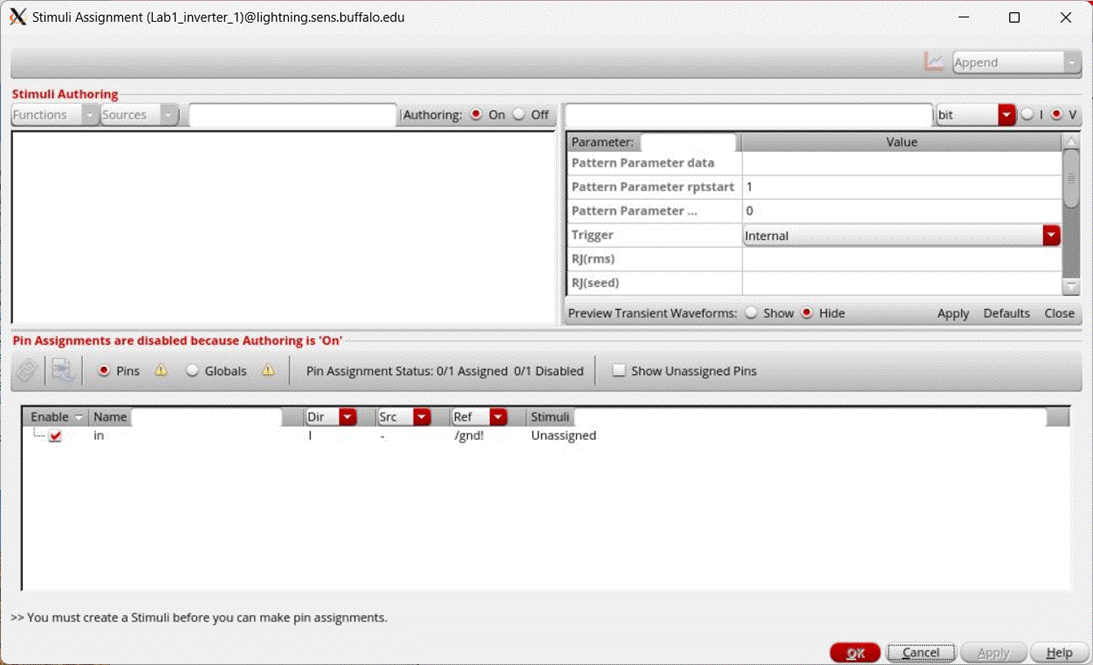

To assign stimuli to pins you first need to author a stimuli. Do this by setting parameter data in the upper right side of the assignment window.

For this inverter, we will set the input pin to go from 0V to 1V at a period of 2ns & a pulse width of 1ns.

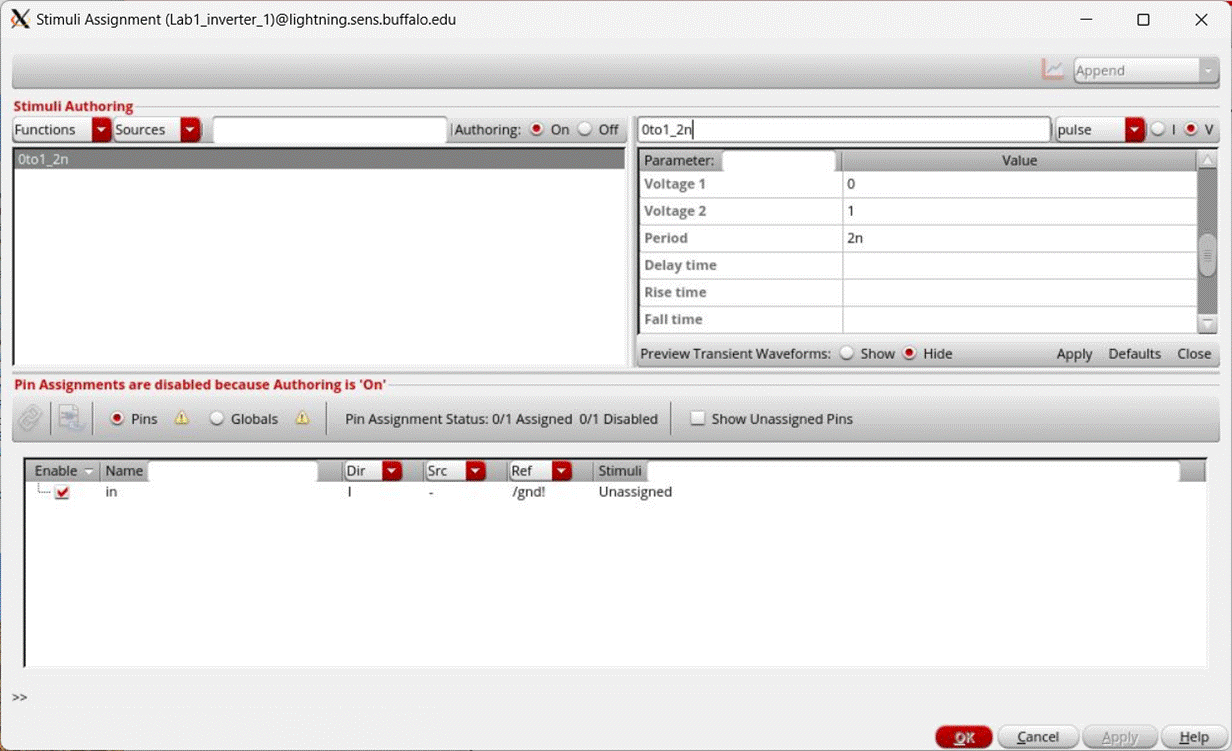

1.    Turn Authoring On.

2.    Set the function to pulse & make sure that V (voltage source) radio button is selected.

3.    Set the following in the parameter menu:

a.     Voltage 1 = 0

b.    Voltage 2 = 1

c.     Period = 2n

d.    Pulse Width = 1n

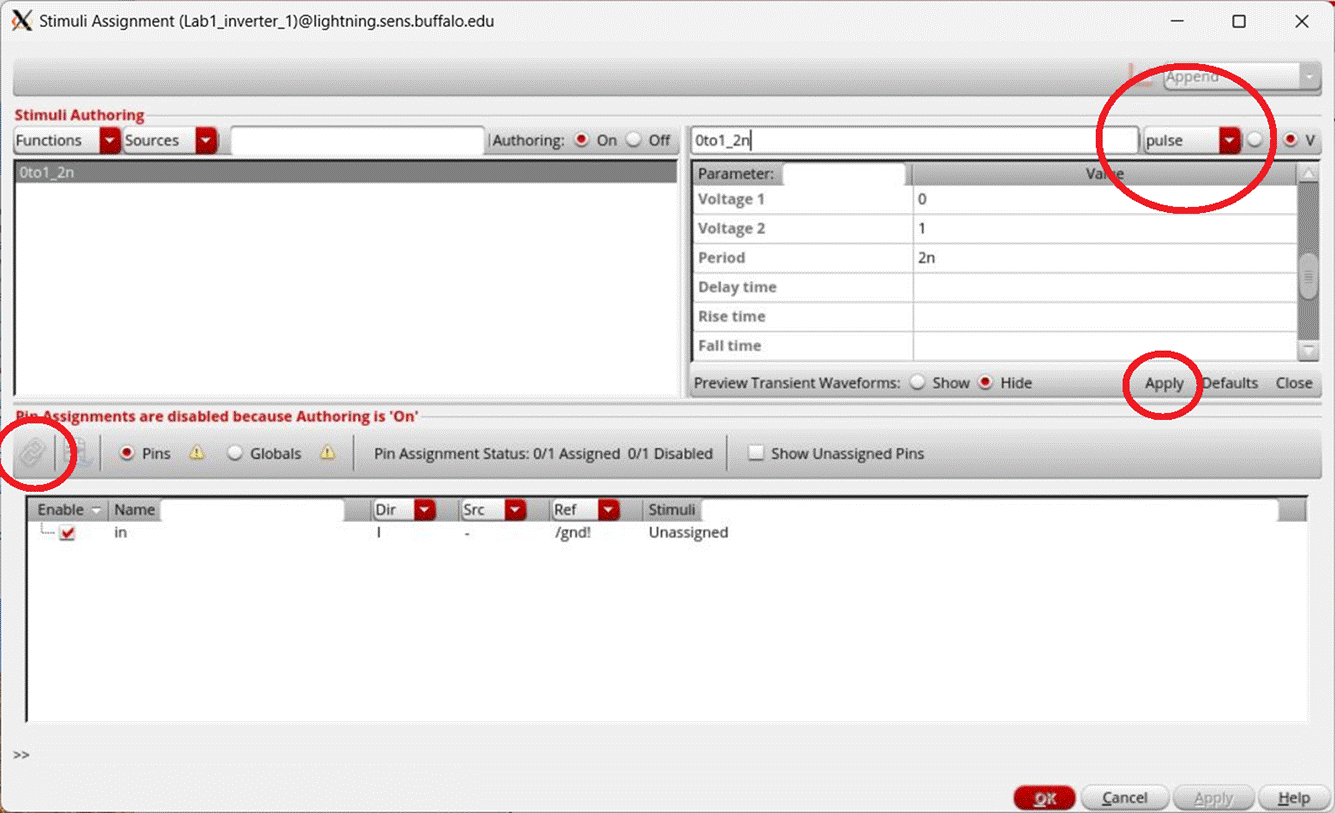

4.    Give a name for the stimuli & click Apply that is underneath the parameter view.

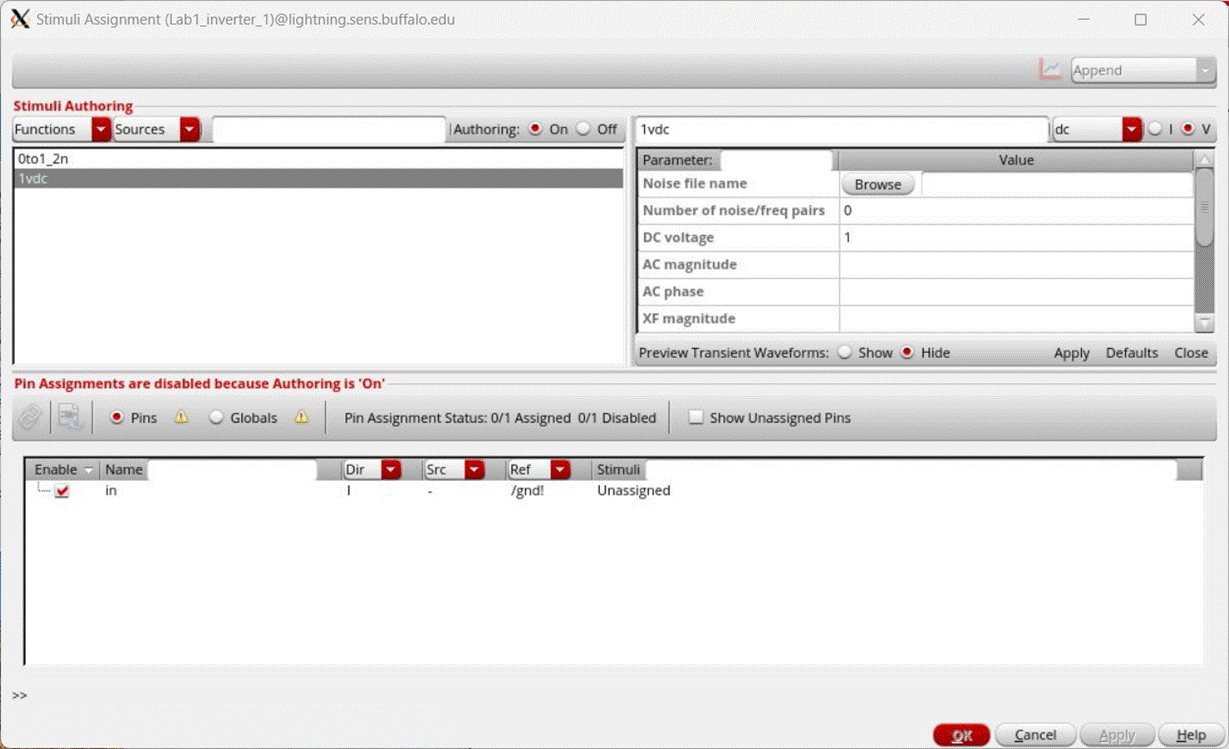

The stimuli that you just created should appear under the Stimuli Authoring section.



Create another stimuli for VDD. Set the following parameters:

a.     Function = dc

b.    DC voltage = 1

Once you have the two stimuli setup, the window should look similar to below:





To assign stimuli to pins, turn off Authoring with the Off radio button under the Stimuli Authoring section.

In the Pin assignments section click on Pins to view all the input pins for the schematic.

Use the Enable checkbox to enable the pins to set stimuli for, disable pins that are unnecessary.

Click the stimuli to assign to the pin & also click the pin (pins) that you want to assign to.

Click the chain icon underneath the Pin Assignments section to assign the stimuli.

To unassign pin(s), right click & select Set Selected Pins to Unassigned.

Click on the Globals radio button to view the global sources.

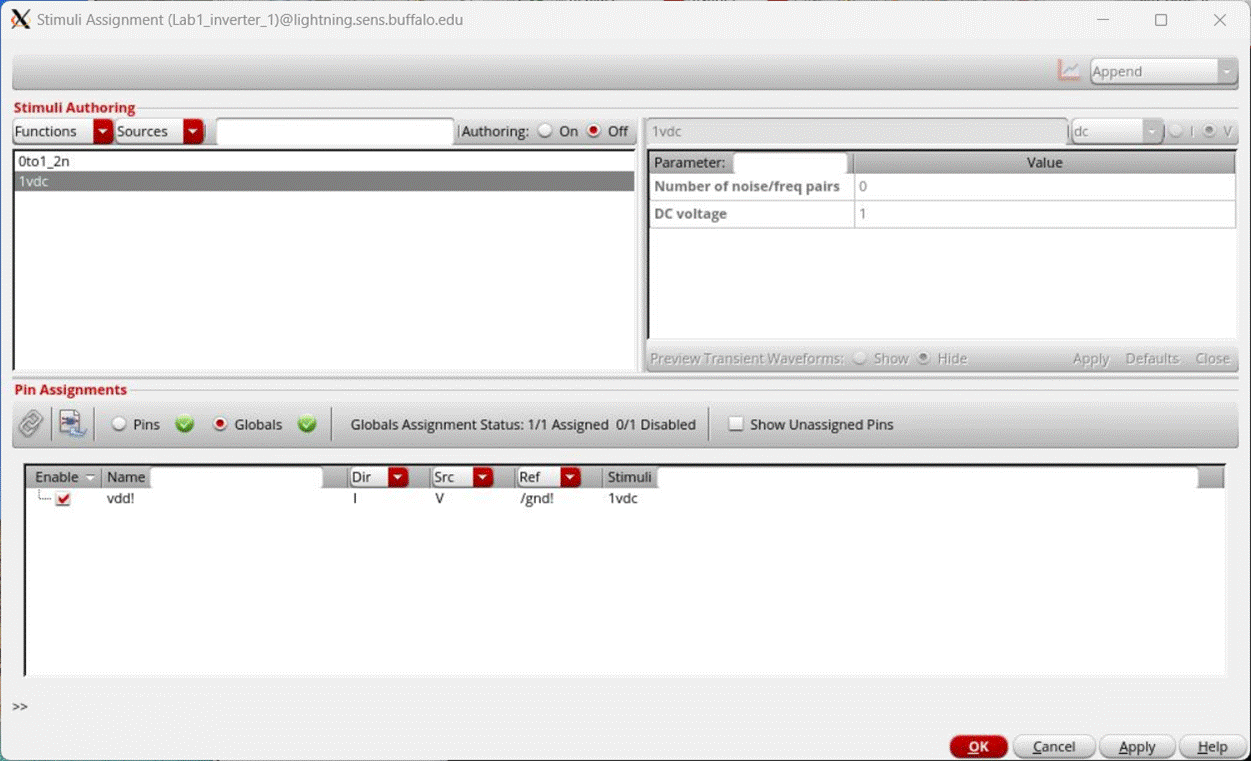

Assign vdd! to the 1V DC stimuli.

Once all enabled pin assignments have been assigned stimuli, Pins & Globals will have green check marks. Click OK to save stimuli.





• In the next step, we choose what analysis is to be performed. We will perform a transient analysis for 4ns and plot the waveforms for the inverter input and output.

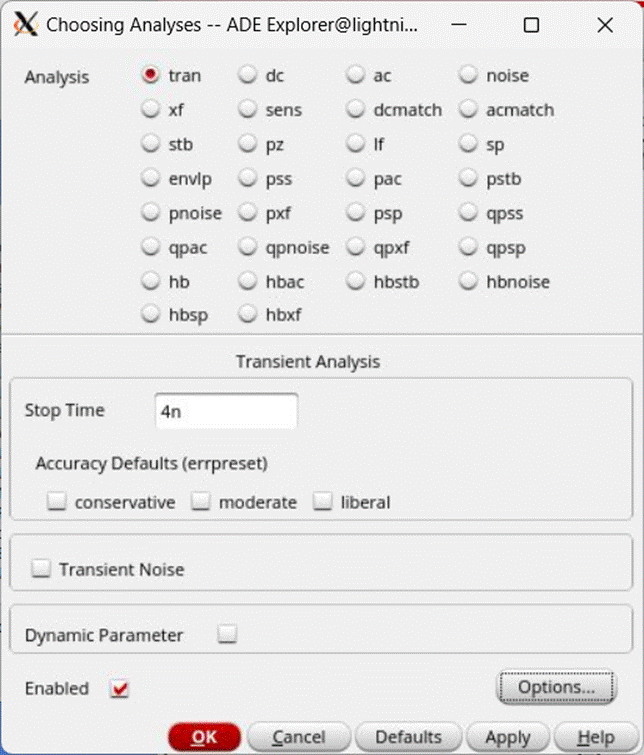

• Click on Analysis -> Choose. On the Choosing Analyses window, click on tran and enter 4n for the stop time.
• Make sure that the Enabled checkbox is checked then press OK to save.



·       Add the signals to keep track of under Outputs -> Add -> Signal.

o   Also add from the probe icon on the right.

·       Under Details, enter the name of the pin to output. In this case type in.

o   You can also choose a pin from the schematic itself by clicking the ellipses, then clicking the pin/net to track.

·       Under the save column, check the in pin to save its output.

·       Create another signal to track the output pin out.



·       To save the voltage waveforms in the circuit, click on Outputs -> Save All in the ADE window. In the Save Options dialog box, select as shown below and click OK:

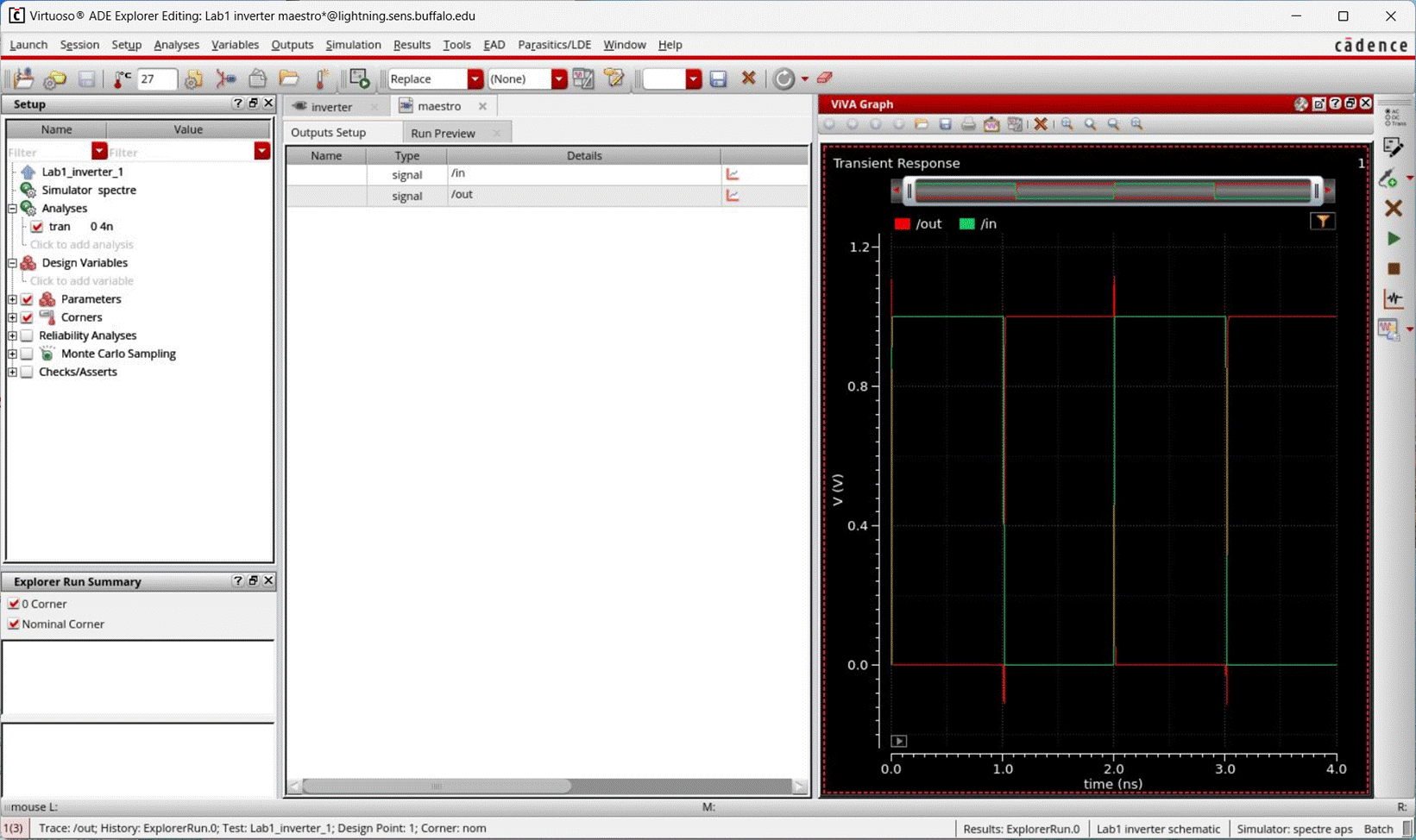

·       The ADE Explorer window should look similar to this:





Running Simulation

• To run the simulation, click on Simulation > Netlist and Run. Check if there are any errors or warnings in the CIW window and fix them. If the simulation completed successfully without 0 errors, the simulation results are ready to be viewed.

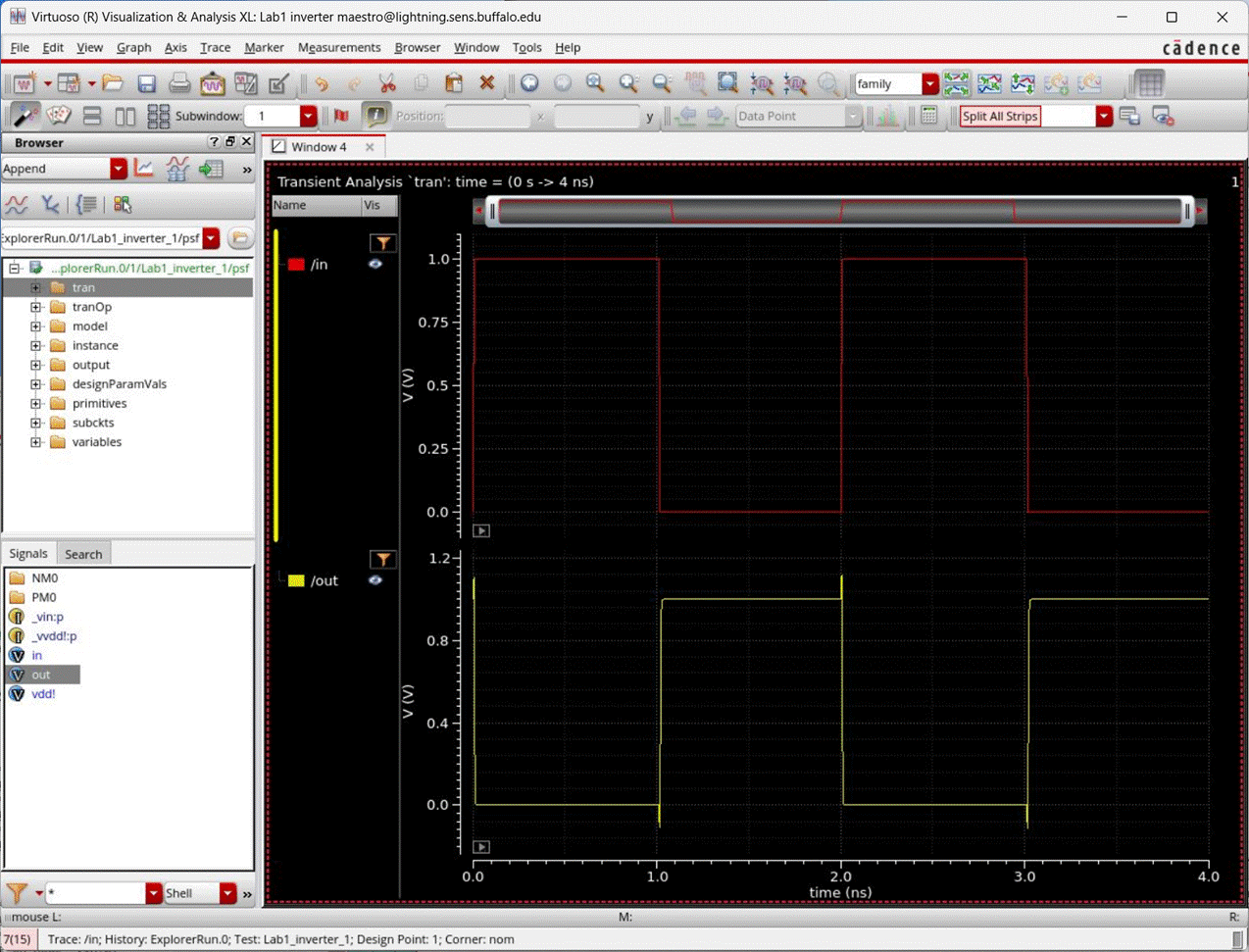

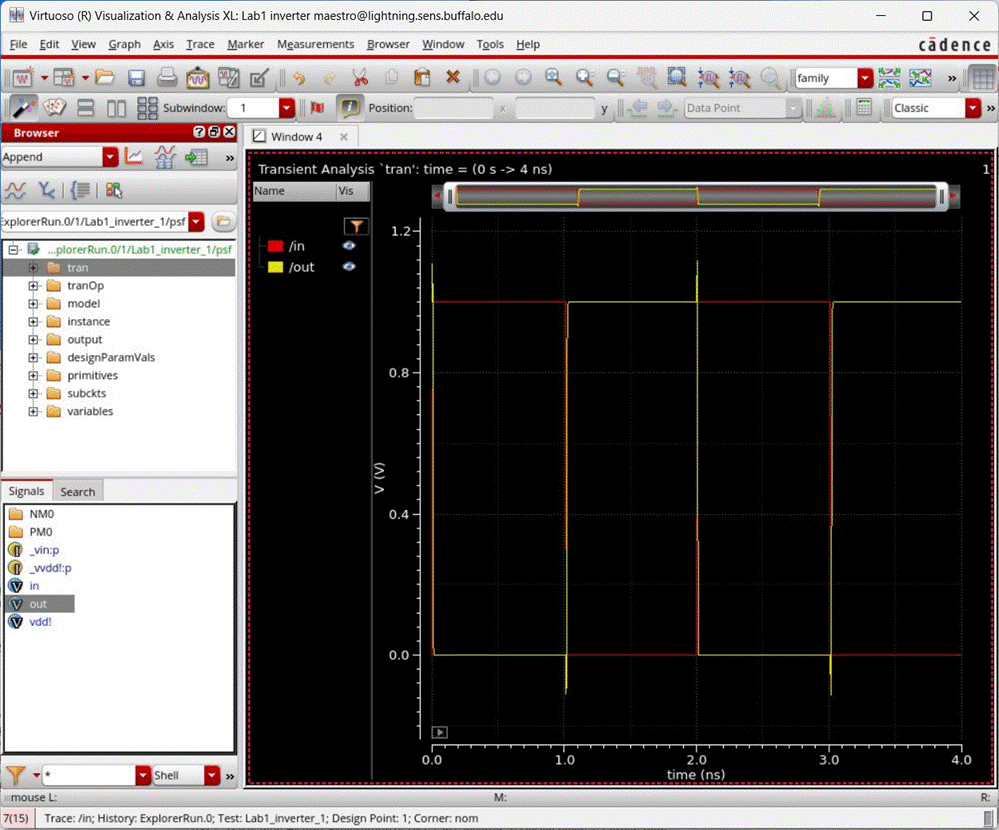

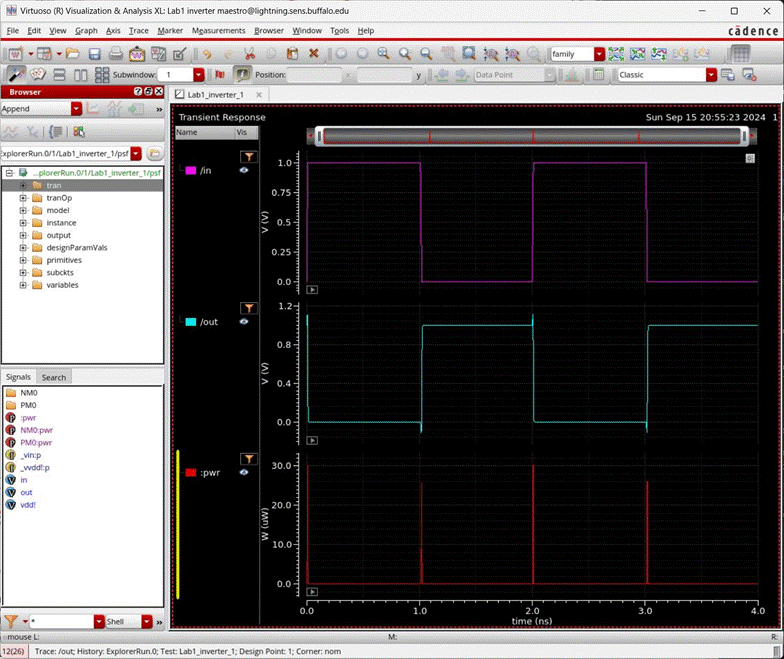

• The graph is opened automatically with the selected signals to plot.



·        To view the graph in a separate window, click Tools -> Results Browser.

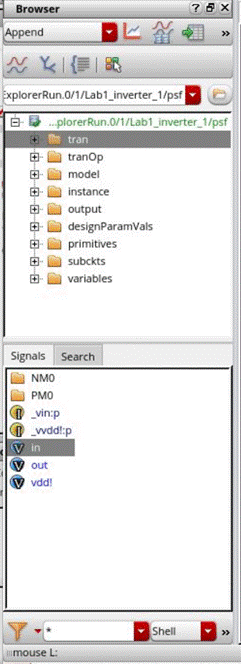

·        In the results browser window, click on tran in the left side pane. That yields a window like this:

• To plot a signal that is not already on the graph, find its name on the left hand pane and double click it.

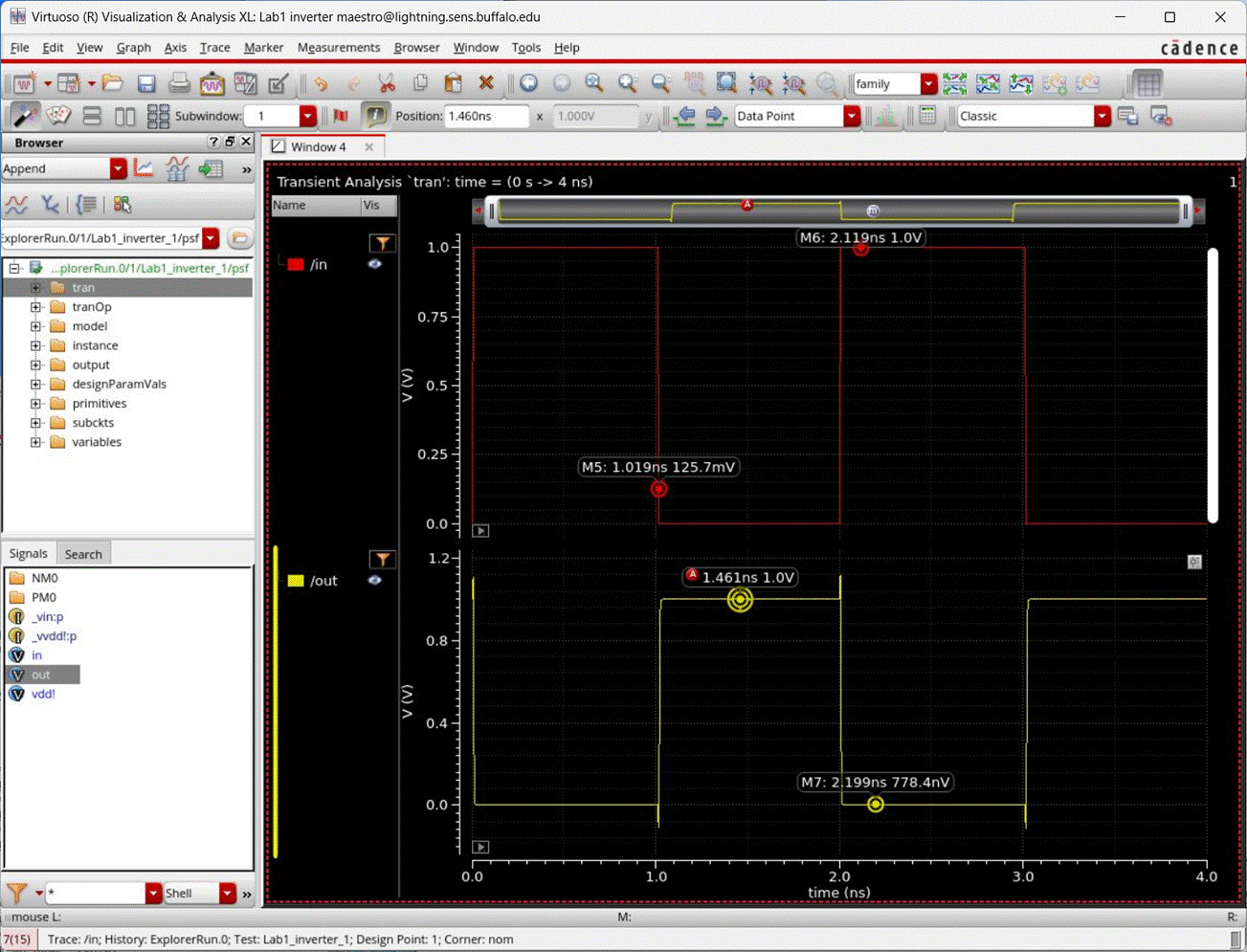

• After double clicking on the signals, the Visualization & Analysis Window looks similar to this:

• There are several methods to analyze the waveform in the waveform window. The hotkeys are most useful include

·        f:        fits waveform in current window display

·        ]:        zoom in

·        [:        zoom out

·        v:       vertical tracker



·        Split each signal to each of its own axis by selecting Graph -> Split All Strips.



·        Marker A: Pressing A on a graph will create a marker based on the location of your cursor. Pressing A again will update the A marker based on your cursor location again.

·        Marker M: Pressing M on a graph will create a marker based on the location of your cursor that will stay until removed. M markers are labeled M1, M2, M3 etc

·        To remove a marker, click on a marker & press the delete key or right click on a marker and select Delete.

·        Markers are a useful way in measuring delays and rise/fall times of signals.





Quit the ADE Explorer session with the Session -> Quit option.



Import Simulation States

The simulation state can be reloaded when it is saved to another simulation. This allows for you to import a state & change just the stimuli to meet your needs.

To import a simulation state, go to Session -> Import and choose the library, cell & view to import from.



If closing the ADE Explorer window closes all the other windows, open the library manager again with the CIE by going to Tools -> Library Manager.

Back to Top



Symbol Creation and Simulation

Symbols are useful when the schematic design is done hierarchically. At a higher of level of abstraction, we would like to use a symbol to replace the details of a cell. Because of this, a symbol of a cell design should define all the input pins and output pins of that cell explicitly. Once you have completed the schematic design, you can create its symbol right from the schematic cell.

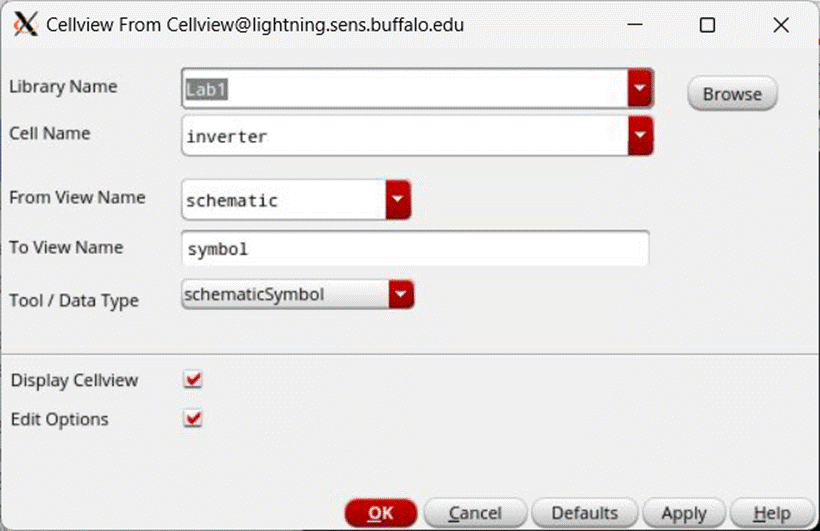

Click on Create -> Cellview -> From Cellview. Click OK on the Cellview From Cellview window.

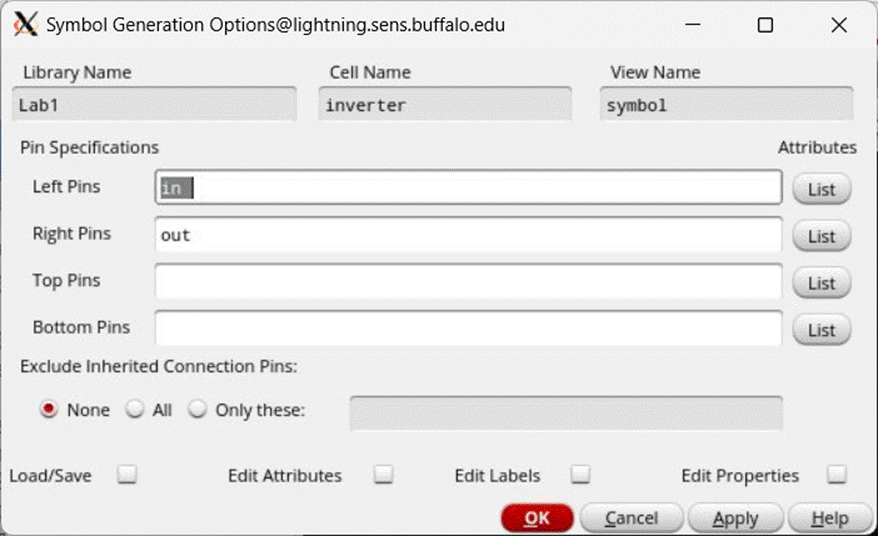

On the next window, define the location of the pins. If you create the symbol from the schematic cellview, the pins are auto populated as shown below. Click OK to open the Symbol Editor.





This will pop-up another window that contains a default symbol picture, which is shown below.

It has a red box that encloses the green colored inverter symbol. This red box defines the actual size a symbol will occupy, if you were to use this inverter symbol in another design.

You can change the size of this box by clicking and dragging. It is good custom to exactly fit the symbol within the red box.

The red square dots indicate the pin connections. [@InstanceName ] and [@PartName] are display variables, which you may delete or keep.





If you don't like this rectangular symbol that is automatically created by the tool, you can create a symbol of you own by dragging the lines and input/output pins to their desired locations. An example is shown below, in which an inverter symbol is created which looks similar to the usual inverter gate symbol:



Once the symbol is created, it can be instantiated in any other cell design. For example, you may create a new schematic cell view (could be under the same library Lab1) to design a ring oscillator. A ring oscillator consists of a chain of inverters. You could instantiate the inverter symbol we just created.

To do this - press hot key i or click on Create -> Instance. In the component browser window, click on Lab1 -> Inverter and place the required number of instances in the ring oscillator schematic.

After Checking and Saving the ring oscillator schematic, it can be simulated using the same procedure described above.

Back to Top



Custom Layout using Layout XL

Now, we will go through custom layout using Layout L, by creating a layout for the inverter cell. To do this, in the Library Manager window, click on File -> New -> Cell View.

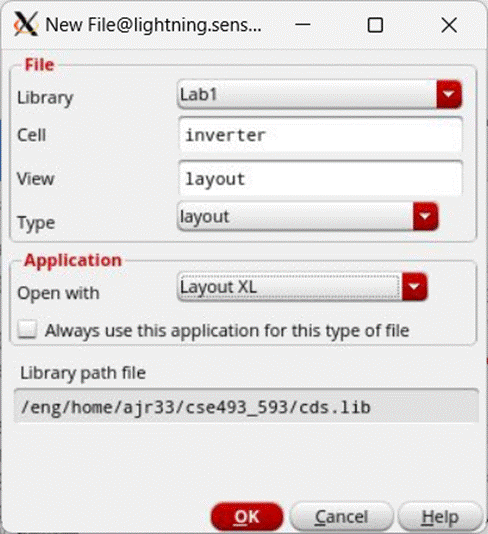

Select Type as layout & Open with as Layout XL. Click OK to open the layout view.



If the license window pops up, click Session or Always. The schematic view & the Virtuoso Layout Suite XL Editing window should open up as shown below:

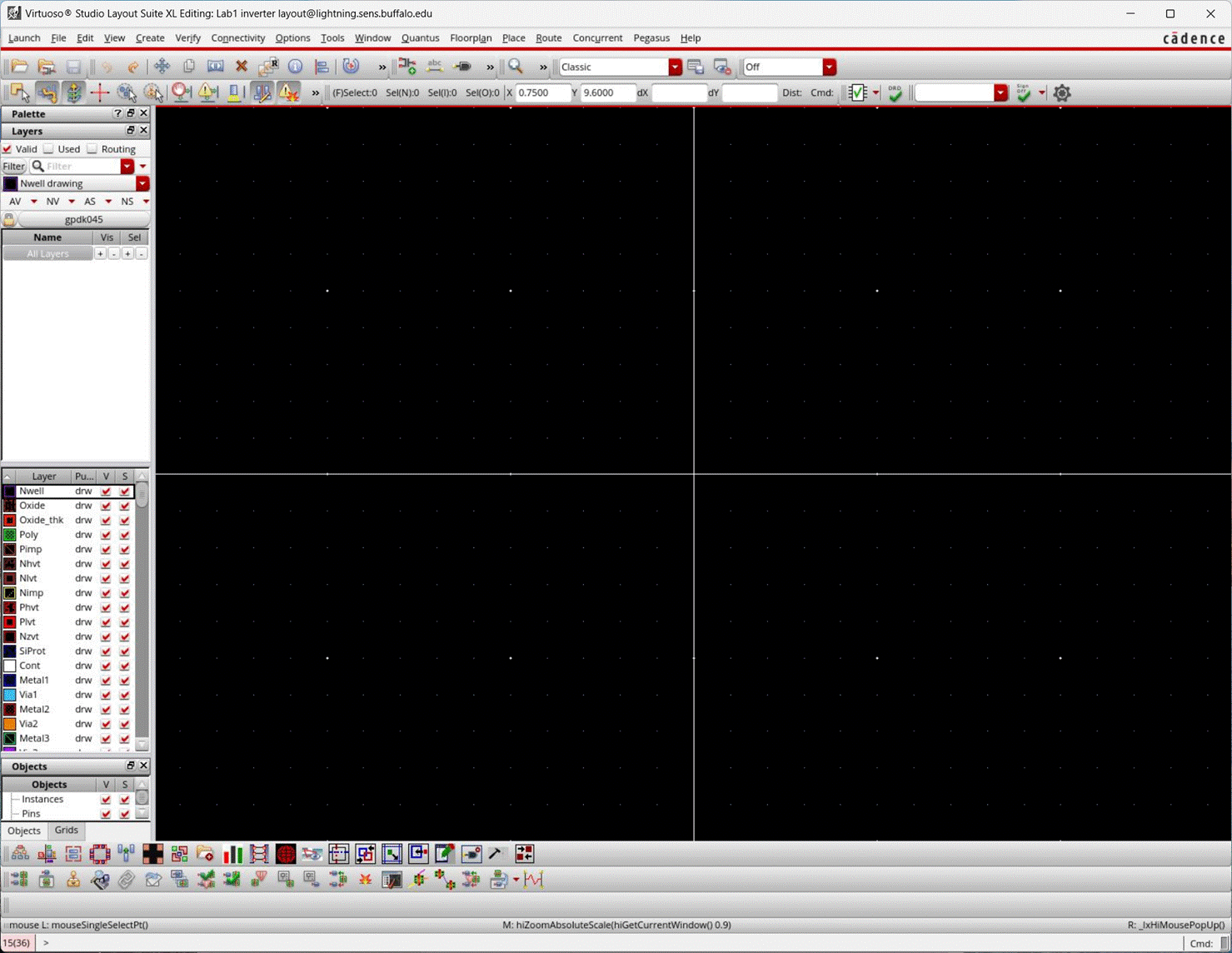

To make grid snapping better you may want to change the snap spacing to 0.01. Go to Options -> Display or use hotkey e to view the display options. Under X Snap Spacing & Y Snap Spacing, set these both to 0.01 for more precise layout positioning. NOTE: Incorrect Grid Spacing can cause DRC errors which may have you to redo your entire design.

On the left hand side, there is a pane that contains all the layers that would be used to draw the layout.

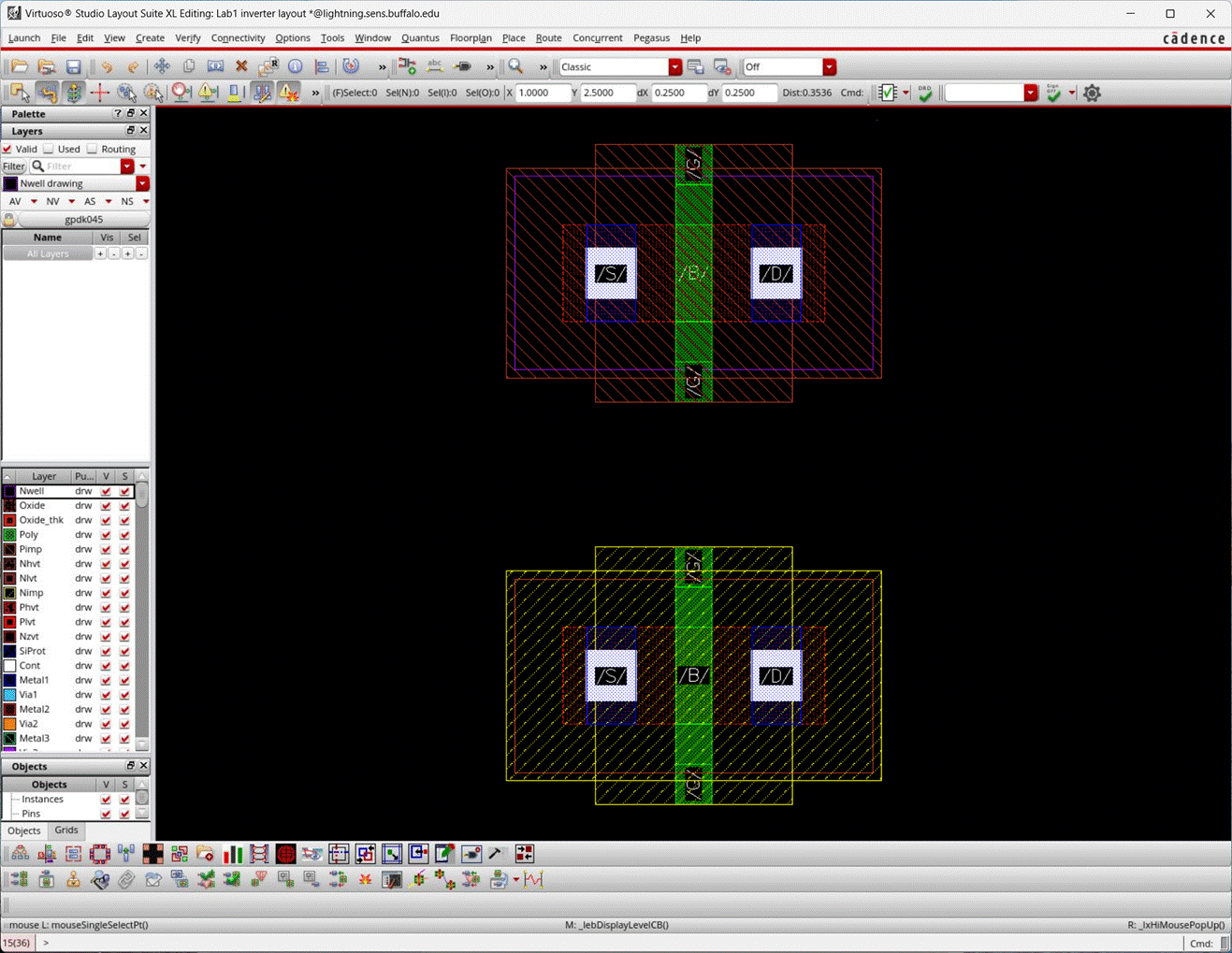

To create the inverter layout, let us first instantiate the PMOS transistor. To do this, press hokey i or click on Create -> Instance. In the create instance window, enter the following:

·        Library: gpdk045

·        Cell: pmos1v

·        View: layout

·        Length: 45n

·        Finger Width: 120n

·        Total Width: 120n

·        Fingers: 1

·        S/D Metal Width: 60n

Place the instance in the layout window. Similarly, instantiate a nmos transistor from the same library and place below the pmos transistor in the layout window. The layout should look similar to one shown below.





Press ShiftF/ControlF to toggle views.

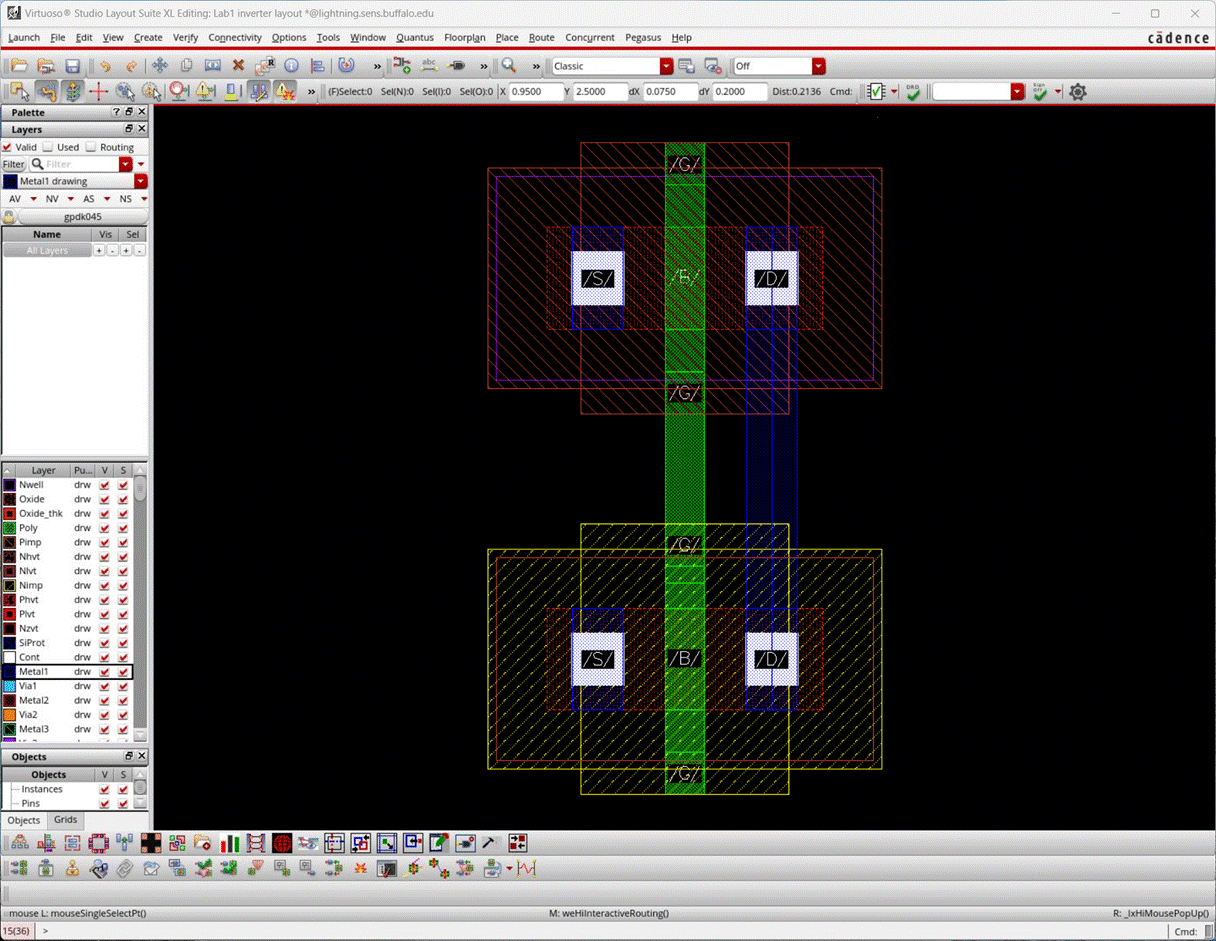

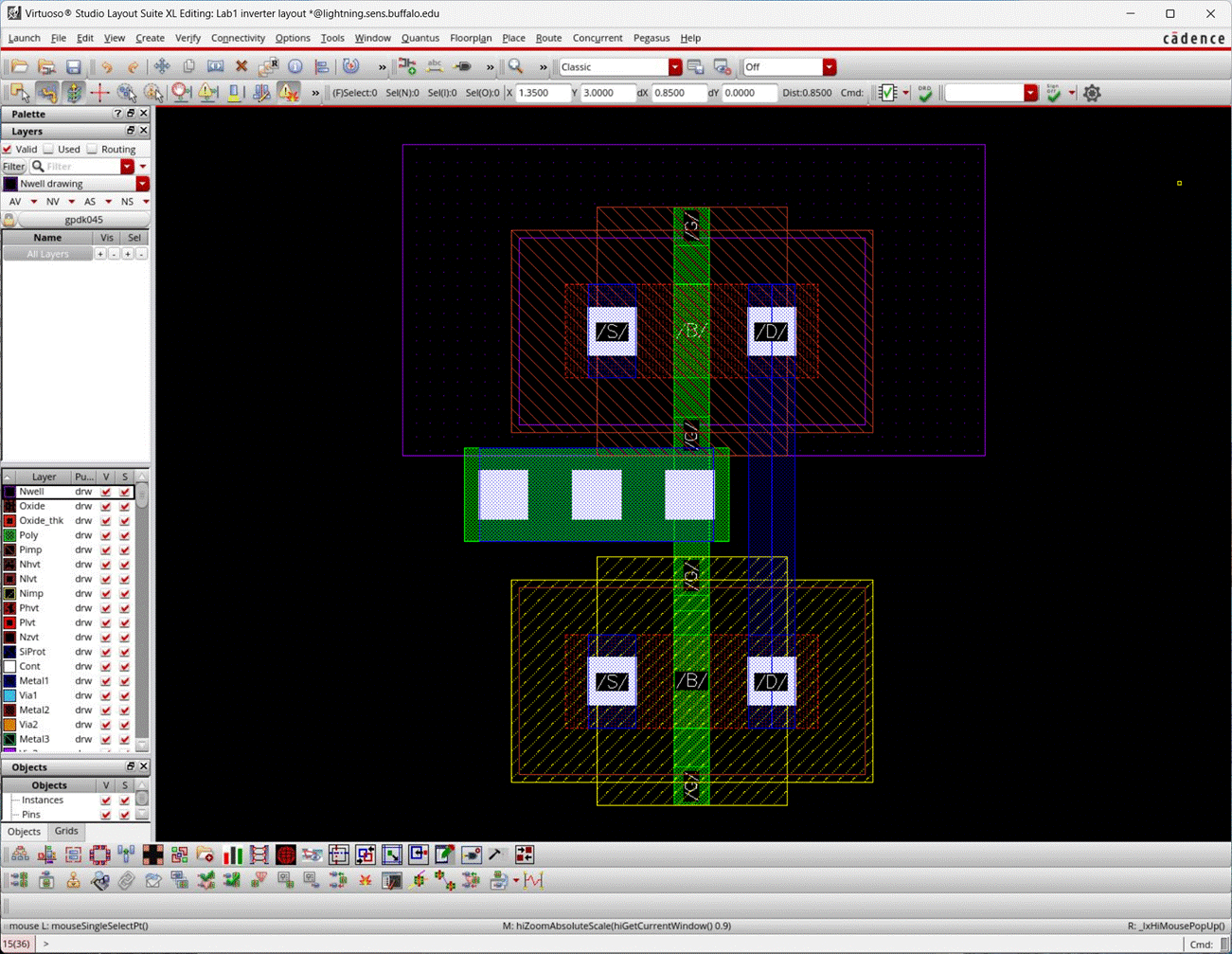

The green rectangle (poly layer) in the middle of each transistor is the gate of the transistor. The white filled rectangles on either side of the gate are vias and can be used interchangeably as source/drain terminals of the transistor. Now, we connect the gates of the pmos and nmos transistors using poly layer.

·        Left click on the poly layer in the layers pane.

·        Then switch back to the layout window and press rectangle hotkey r. The rectangle window appears. Check the box to enable smart snapping.

·        Switch back to the layout window, and left click at the left bottom corner of the rectangle you want to draw.

·        Then left click at the top right corner of the rectangle you want to draw.



Most hotkeys used in the schematic editor work in the layout editor too. After drawing a rectangle you might want to take a few minutes to familiarize yourself with manipulating the rectangle shape and size.

Try using different hotkeys such as

·        m: move

·        s: stretch

·        p: path

·        o: via

·        ctrl/shift z: zoom in/out

·        f: Fit to Window

·        k: ruler

·        u: undo

·        shift u: redo

To cancel the current command, press ESC. At the end of this, the gates should be connected, as shown below:



As we can see, the width of the poly rectangle is not perfectly aligned with the gate of the two transistors.

To fix that select the drawn poly & press the hotkey Q. Change the rectangles Width to 0.045 & press Apply to see the changes. Once, youre happy with the changes, press OK to close the properties window.

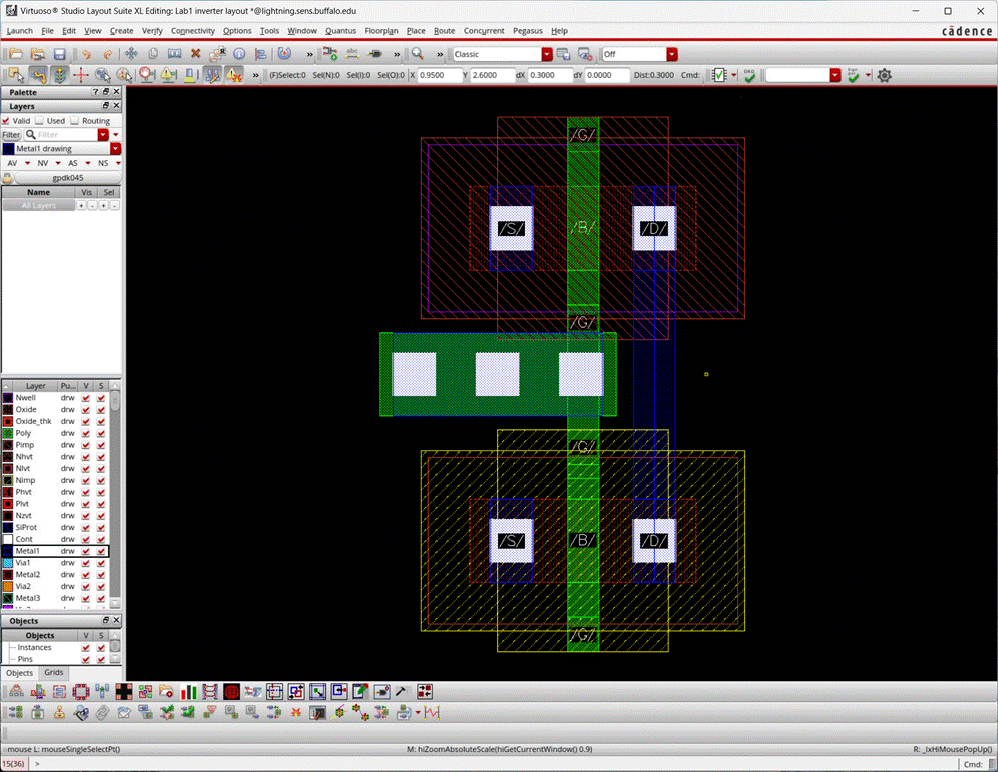

Create a metal 1 wire (using rectangle or path) to connect the drains of the two transistors (connect the two vias, as shown below). Use more rectangles to draw out the wires.



The poly layer currently is connected to our gates. We want the in pin to connect to the poly layer. Instead of directly connecting to the poly layer, lets use a metal as it will be more conductive than poly.

To transfer between two layers or more layers, use a via. GO to Create -> Via or use hotkey o.

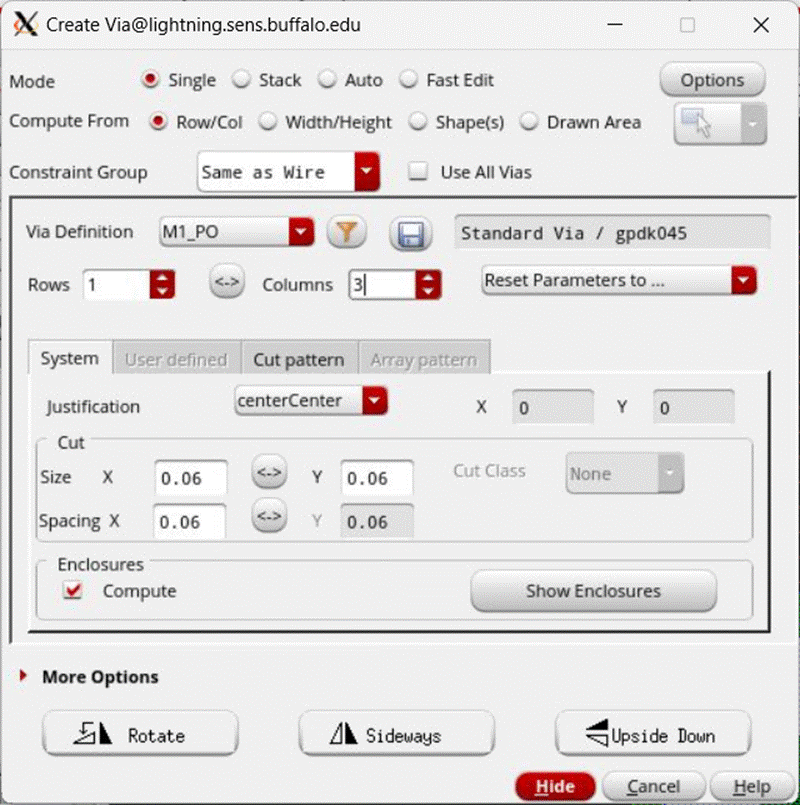

Set the following parameters for a single metal 1 to poly via.

·        Mode: Single

·        Via Definition: M1_PO (Metal 1 to Poly)

·        Rows: 1

·        Columns: 3



Place the via so that the right most via is on top of the drawn poly layer to make a connection as shown below.



Save the layout with File -> Save.



Running DRC

DRC stands for Design Rule Check & it make sures that the layout is following the rules of the constraints from the foundry. In other words, a passing DRC means that there are 0 errors & that the design is up to code for the foundry.

It is best practice to run DRC checks often rather than at the end of finishing the layout so that you can catch errors early instead of later where you possibly may have to change your entire layout.

To run a DRC, go to Pegasus -> Run DRC

The form should be auto populated with some defaults. Make sure that the following are set & if not set them yourself.

·        Run Data

·        Run Directory: rundir/drc

·        Rules

·        Techonology

·        Technology mapping file: /util-cse/cadence/local/gpdk045/pvtech.lib

·        Technology: gpdk045_pvs

·        Rule Set: 493-593

·        Input

·        Library: Lab1

·        Cell: inverter

·        View: layout

·        Convert Pin to: Geometry + Text

·        Run RV checked

When choosing the Library, Cell, View you can press this icon:

to populate the form with the data of the current active window.

Click on Submit to run the DRC. Save resources if prompted.

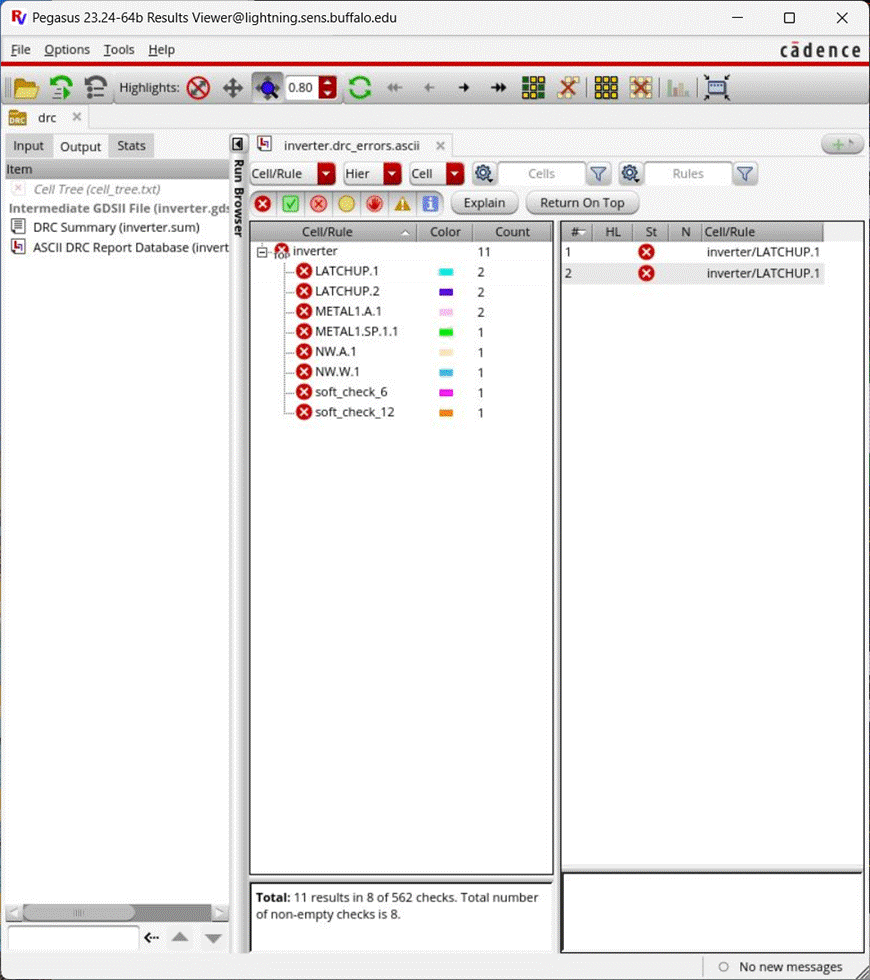

The Pegasus Results Viewer should automatically open when DRC has completed.

In the Pegasus Results Viewer, you can see a number of errors that pertain to the layout currently.

Double clicking on a rule error will zoom into the error on the layout. This is very useful for debugging where errors are & fixing them.



Close the DRC Result Viewer & the report viewer by clicking on the Close Report button in the Pegasus Reports window. We will fix these errors as we continue. You can reopen the report very easily by going to Pegasus -> Recent Runs -> drc.

Were going to take the NW.A & NW.W errors first. They are nwell errors that specify that the minimum nwell area is >= 0.18m & that the minimum nwell width is >= 0.3m.

Back in the layout we can see that Nwell is used for the pmos transistor. Take a rectangle & draw over the nwell so that it includes the entire pmos transistor within it as shown below.

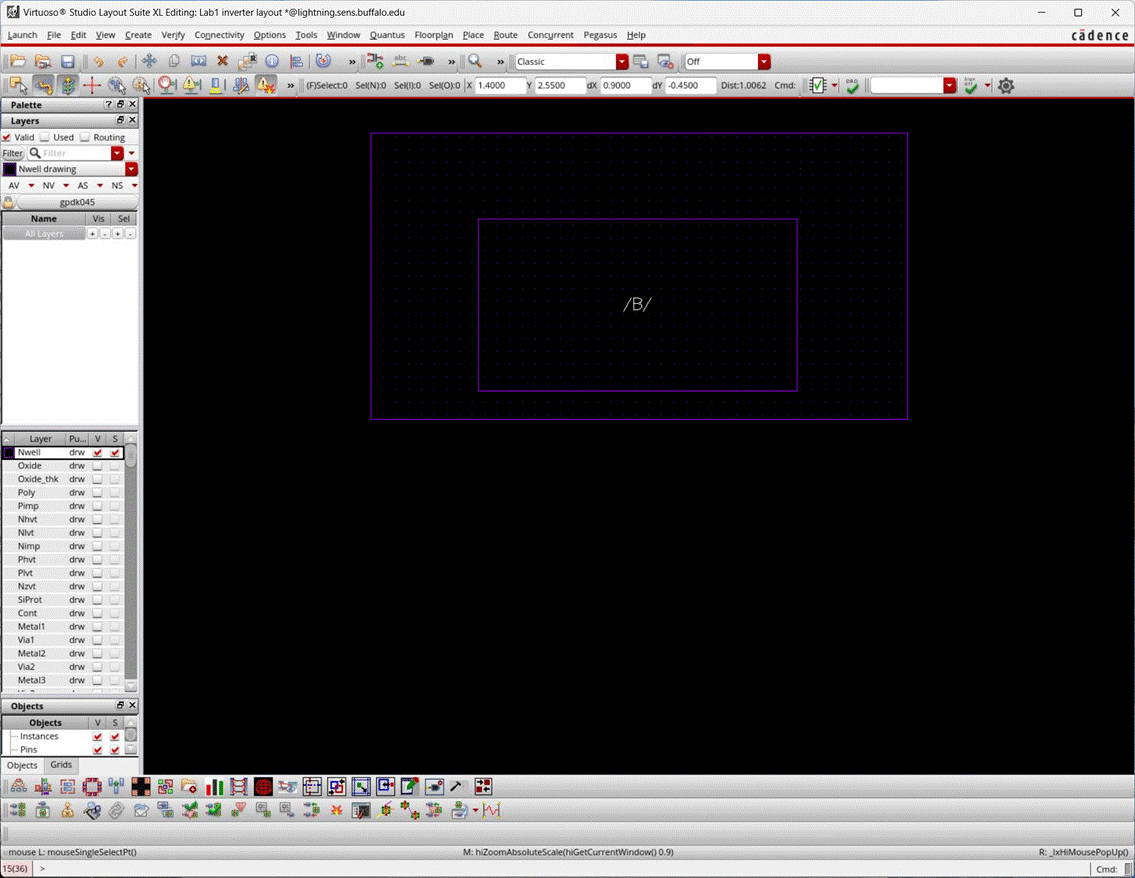

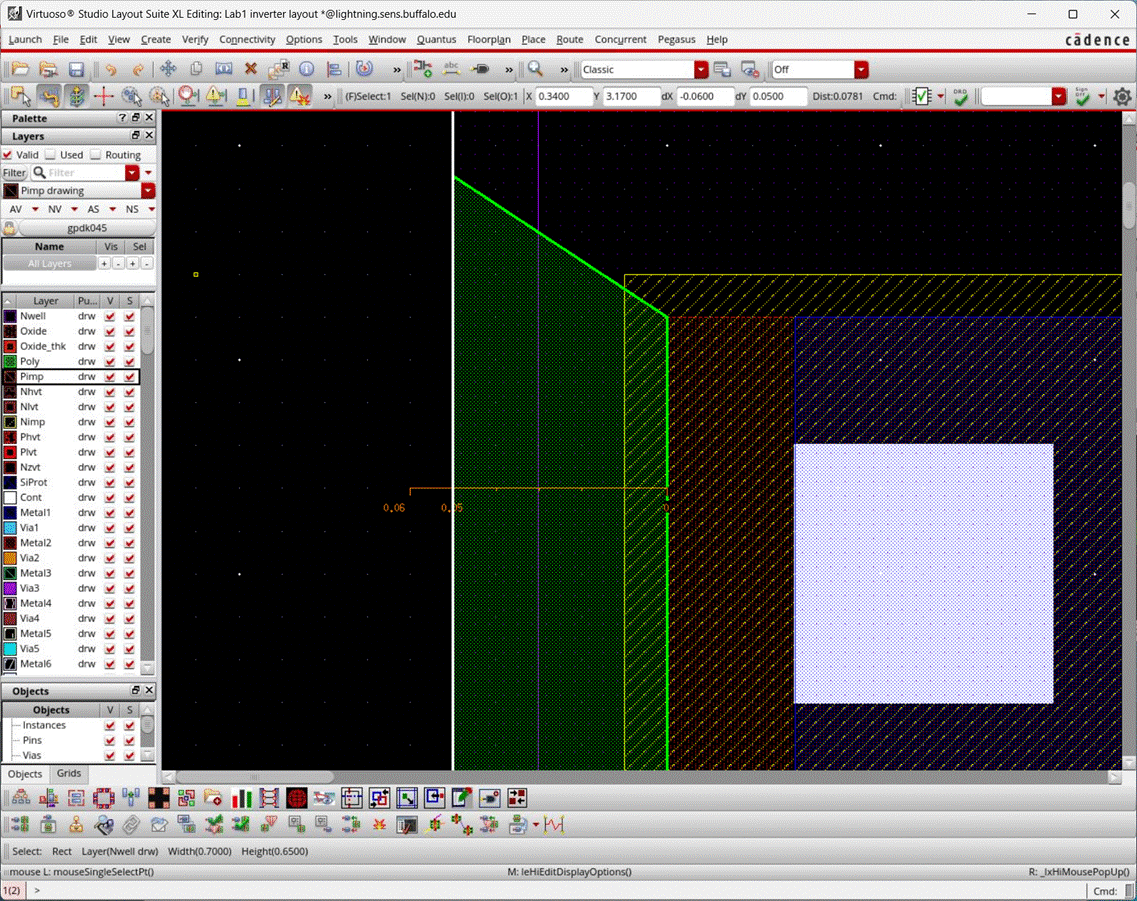

Filter the layers by selecting the layer you want to see & selecting NV at the top of the layers pane. Show all layers again by clicking the AV button.

Filter the nwell layers by clicking on the nwell layer then select NV. You should see both rectangles only on the view as shown below.



Verify that your layout is similar to above & click AV to show all the layers again.



Run DRC again to verify that the nwell rule errors do not appear anymore.



Create another via from M1 to NWELL that have 5 columns and 1 row. Place the via above the pmos transistor.

This via is going to be used for connecting vdd! to the nwell. We use 5 columns of vias to ensure better contact although 1 column would work.

Connect the metal 1 source of pmos to the via to create a path for vdd to connect through.

To tightly fit the layout, deselect any components then use the Stretch tool with Edit -> Stretch or by pressing hotkey s.

Going into the stretch tool with a component selected will move the entire component. Without any component selected, you can freely selected an edge of any component to stretch or shrink to your desired fit.

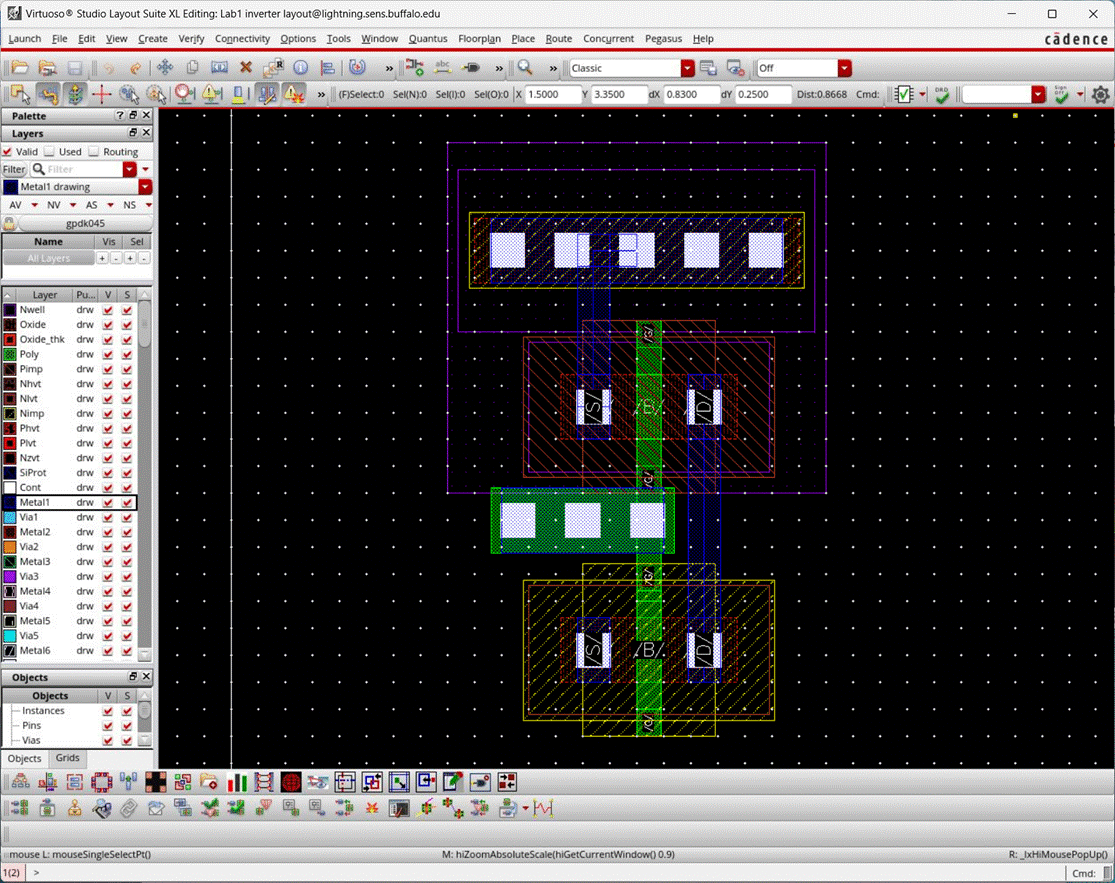

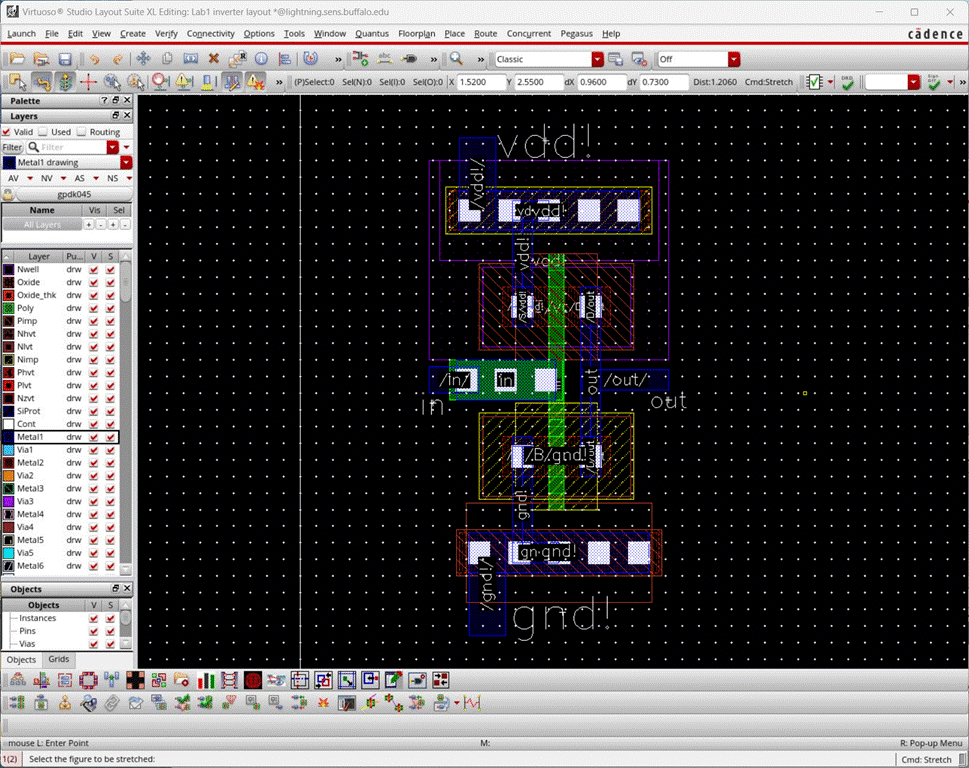

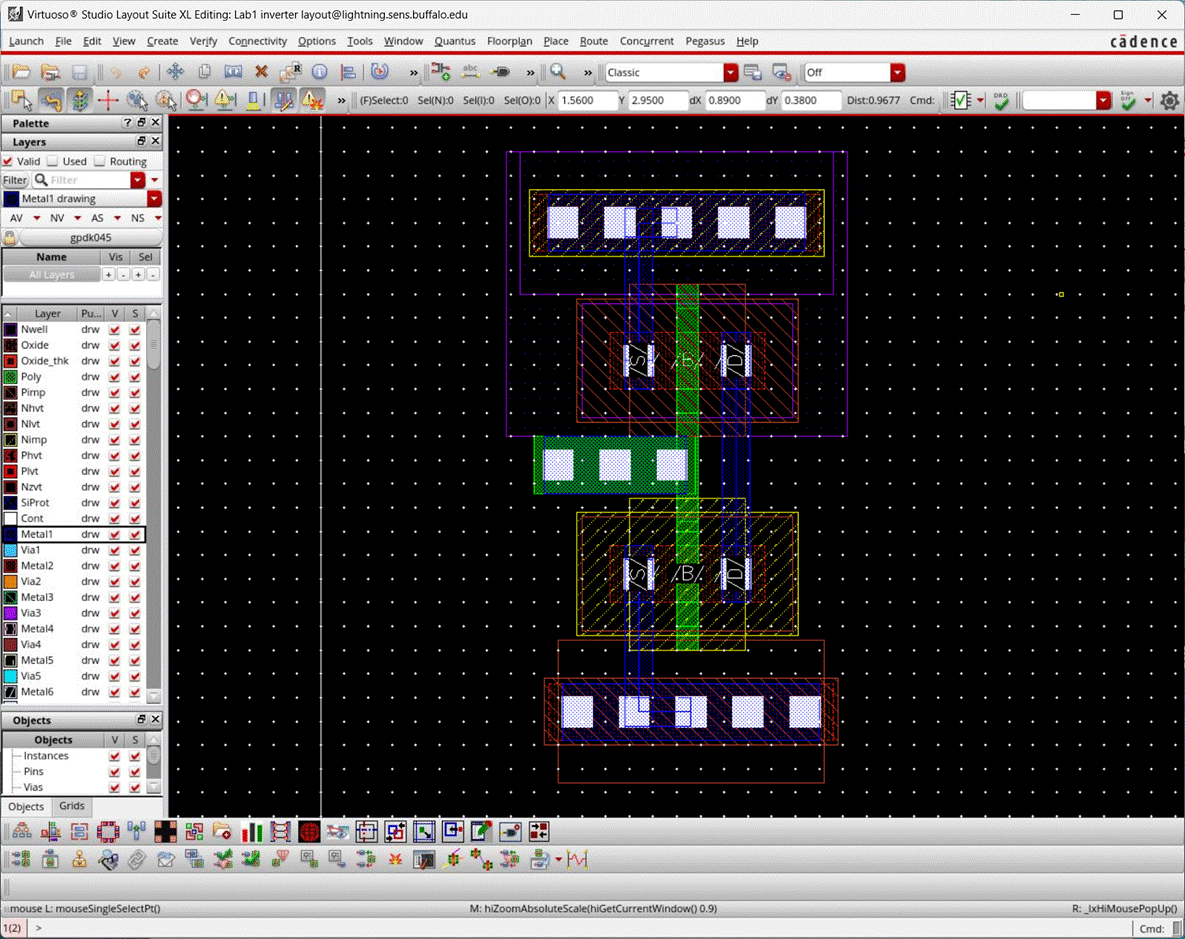

By now, your layout should look similar to this:



Run DRC again. If your DRC shows NW.E rule error, youll need to increase the distance of the oxide layer and the nwell layers.

To create a ruler measurement, go to Tools -> Create Measurement or use the hotkey k. Clear measurements with Tools -> Clear All Measurements or use hotkey shift k.

Start at the edge of the oxide layer & measure up to the DRC specification (0.06m).



Now you can easily stretch the nwell edge in order to pass DRC.





Add a via from metal 1 to p-substrate (M1_PSUB) with 5 columns, underneath the nmos transistor.

Connect the source metal 1 of the nmos to the via to create a contact for ground (gnd!) to flow through.



Your layout should look similar to this once all DRC checks pass:





Running LVS

LVS stands for Layout vs. Schematic. It is a check that compares a layout with a schematic & sees if all the nets, inputs & outputs match. An LVS passing means that your layout in ideal circumstances, would perform exactly as your schematic did in simulation.



To run LVS, go to Pegasus -> Run LVS

The form should be auto populated with some default values but you MUST make sure that the following are set to run LVS correctly:

·        Run Data

·        Run Directory: rundir/lvs

·        Rules

·        Technology

·        Technology mapping file:  /util-cse/cadence/local/gpdk045/pvtech.lib

·        Technology: gpdk045_pvs

·        Rule Set: 493-593

·        Input

·        Layout

·        Library: Lab1

·        Cell: inverter

·        View: layout

·        Convert Pin to: Geometry+Text

·        Schematic

·        Library: Lab1

·        Cell: inverter

·        View: schematic

·        Output

·        Additional Output

·        Create Quantus Input Data checked

·        Data Dir: svdb

·        Run RV checked



Once you have verified these settings are set, click on Submit button to start the LVS job.

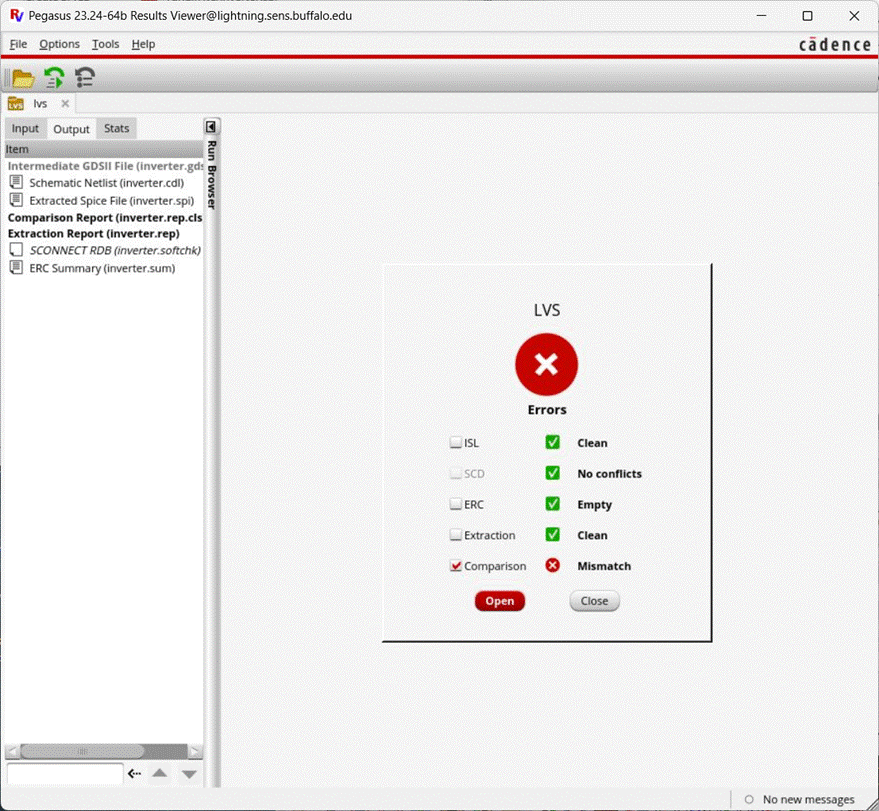

You should see the following window when the LVS job completes:



LVS did not match the netlists so click on Open to view the report.



From the report, click on inverter on the right pane to view the cell specific errors.

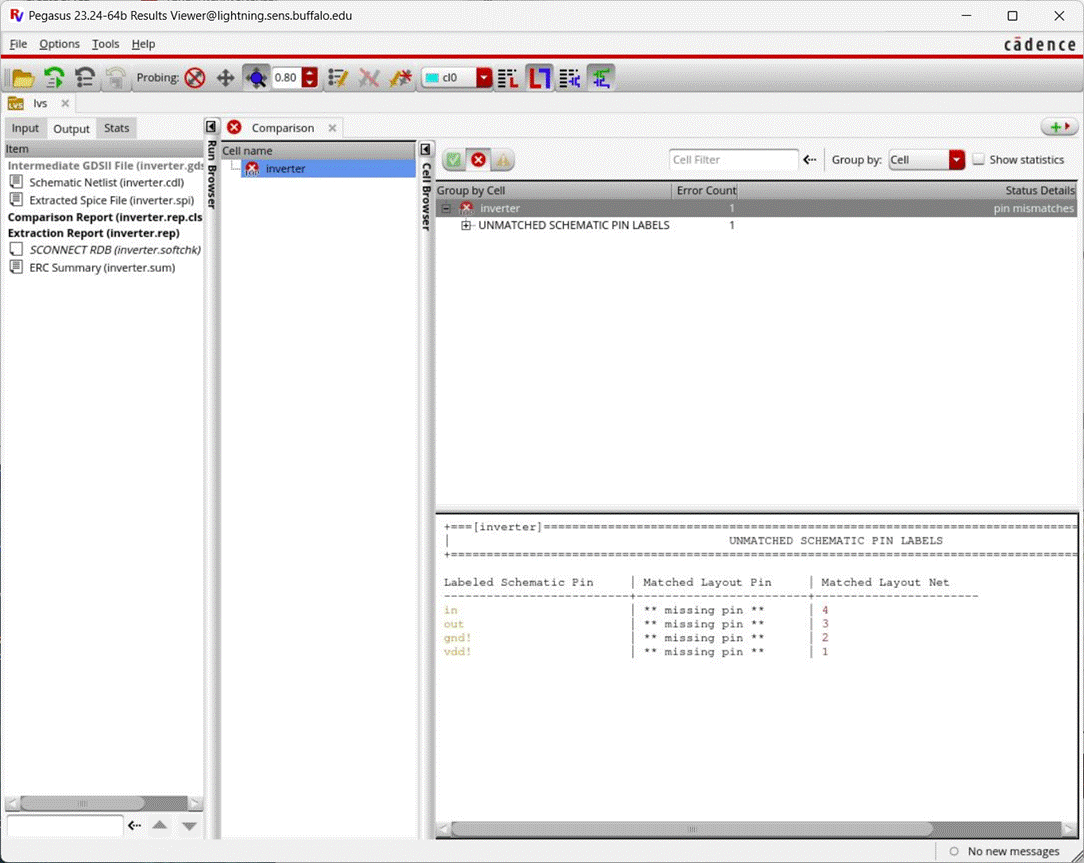

We can see from the report that each of the four pins from the schematic were unable to be matched on the layout.

Next, will fix the errors so that LVS passes.

Close the report with the Close Report button similar to DRC.



To create a pin on the layout go to Create -> Pin.

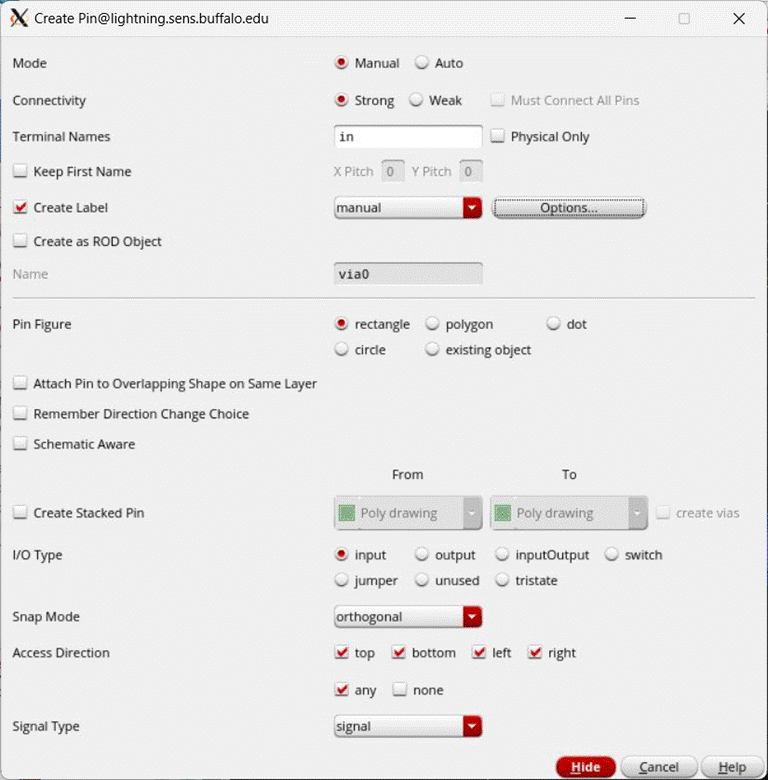

In the following window, set the following:

·        in as the terminal name

·        Check the Create Label option

·        Click on options & check auto under Height. Click OK.

·        You can also set the height as you like (0.1) is pretty good for these small devices.

·        Select input for I/O Type

Select the metal 1 layer to create the pin on metal 1. Metal is always a good choice for pins as it is the most conductive.





Place the pin on top of the M1_POLY via that connects the two gates of the transistors. Placing the pin is similar to placing a rectangle. Clicking once will start the pin at that corner. Clicking again will create the whole pin. Next, click where you want the pin label to appear. Ideally, pick a spot that only has one layer underneath the pin so that later on there is less confusion as to what the label connects to.

Similarly, create a pin for the out pin. This time, set the I/O Type as output. Place this pin on the metal 1 between the two drains of the transistors.

Lastly, create the vdd! & gnd! pins. For pins that have the same properties, you can specify multiple terminal names (separated by spaces) & the tool will allow you to place more pins until the terminal names list is done. Set vdd! & gnd! pins to inputOutput I/O Types.

Therefore, you can specify vdd! & gnd! in the terminal names list as shown below:



If the labels of pins are too big you can edit them by clicking the label & selecting Edit -> Basic -> Properties or using the hotkey q, and change the height of the label from there.

Once the pins are created, your layout should look similar to this:



Run LVS again under Pegasus -> Run LVS & make sure that the form options are correct.

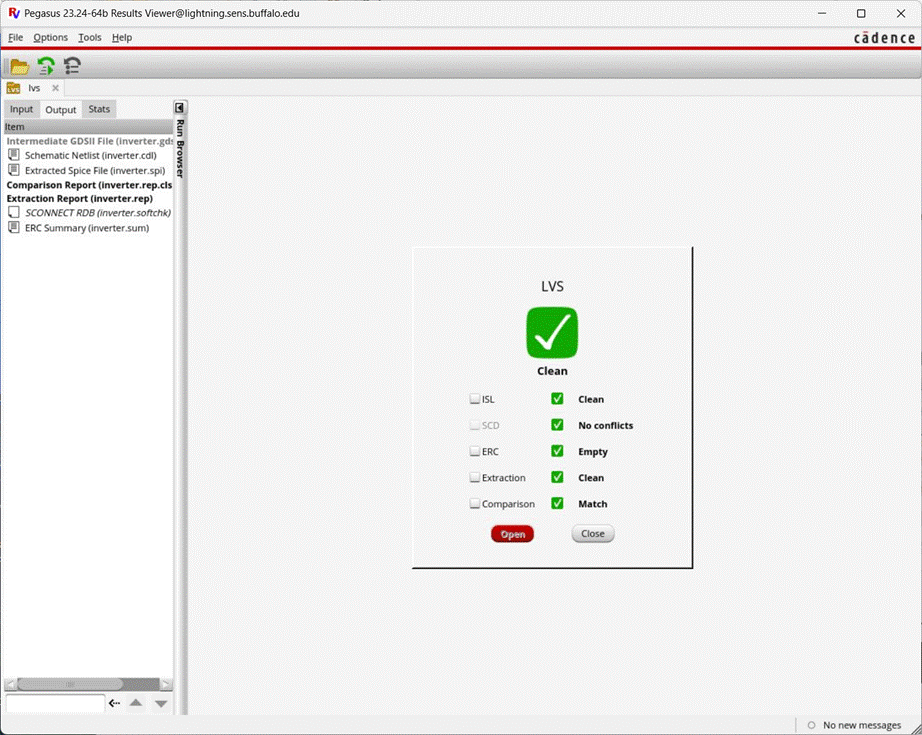

LVS netlist should now match with the following window.





Parasitic Extraction with Quantus

Once DRC & LVS checks pass, the next step is to do a parasitic extraction of the electrical circuit netlist from the layout.

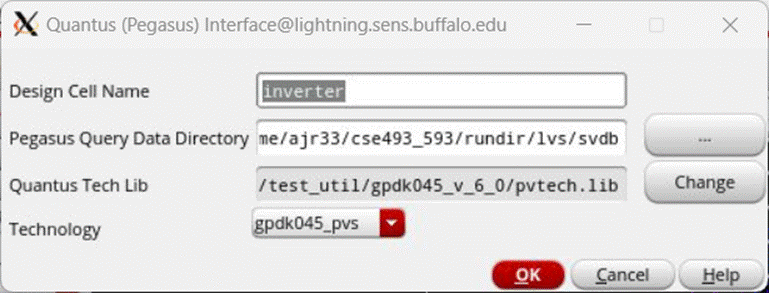

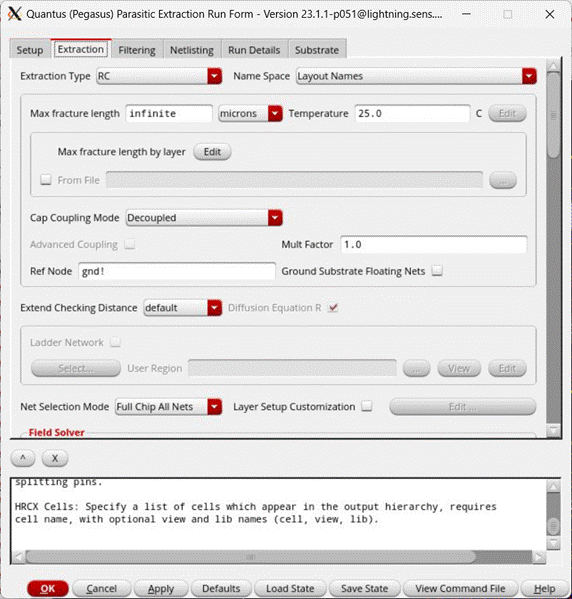

To set up the parasitic extraction, click on Quantus -> Run Pegasus Quantus. The interface window should pop up and be already prefilled from the latest LVS ran as shown below:

Notice that the svdb file as the directory from the LVS Output options earlier. Quantus can only be ran after an LVS of the layout has been ran so keep this is mind.

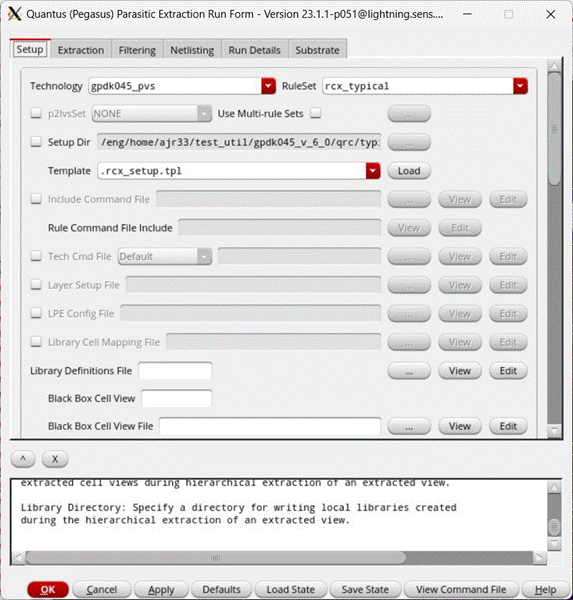

Click OK and set the following:

·        Setup

·        Technology: gpdk045_pvs

·        Rule Set: rcx_typical

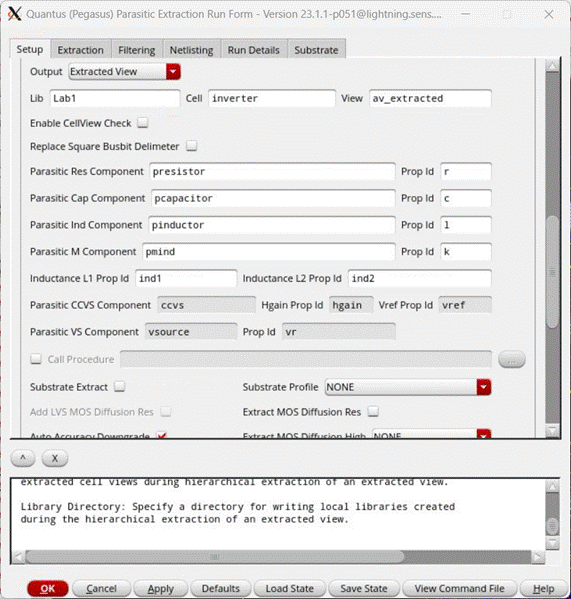

·        Output: Extracted View

·        Lib: Lab1

·        Cell: inverter

·        View: av_extracted (you can pick a name if running multiple extracted views)

·        Extraction

·        Extraction Type: RC

·        Cap Coupling Mode: Decoupled

·        Ref Node: gnd!





After the forms parameters are set, click OK to start the extraction. This will take a few seconds.

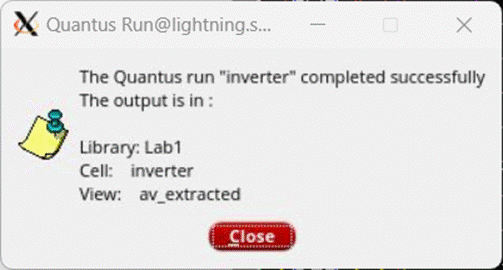

Once done you should see a popup saying that the extraction completed & its location:

If there are errors, view the error report or check the CIW for more information.

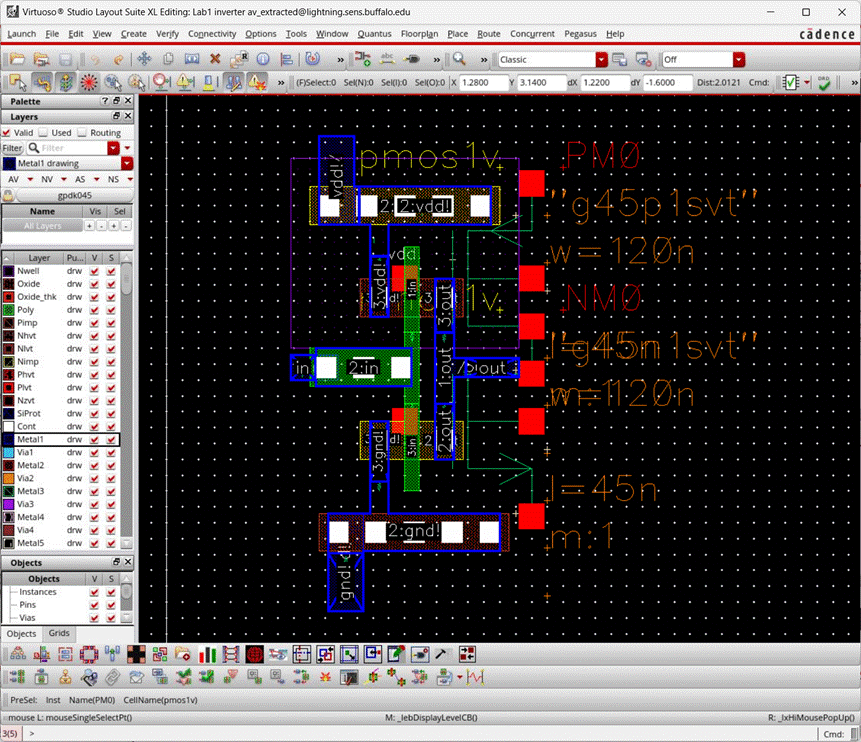

Once the Quantus run is complete, go to the Library Manager window and open the extracted cell view for the inverter. It should look similar to the window shown below. If it doesnt try toggling the view with Shift F/Ctrl F.

Now the extracted layout is ready to be simulated. To simulate it, follow the same steps as specified in the Simulation section above.

Back to Top



Layout Instantiations

Similar to creating symbols at the schematic level, your layouts can also be instantiated and repeatedly used several times while designing a hierarchical design. Let us go back to the inverter example. Create a new layout cell view for the inverter cell. Create an instance by clicking Create > Instance in the layout window. Then browse to the Lab1 library, inverter cell and select the layout. This can now be instantiated in your layout multiple times and used similar to the schematic symbols. The layout can be DRC verified, extracted and simulated using the steps described above.



Waveform Calculator Tutorial

Waveform calculator can be used to perform may different measurements/transformations on the waveforms displayed in the waveform window. This includes computing the average of a waveform (e.g. power) over the entire length of the simulation or in a given period of time, finding the propagation delay of between input and output signals, or addition/subtraction/multiplication/division of waveforms, etc.

Example: Let us compute the average power consumed in a circuit during time 0 to 2ns. To do this, make sure that before simulation you select the Outputs > Save All > power (all) option in the ADE Explorer window. Then simulate the circuit as usual, with simulation time more than 2ns.



In the waveform graph window, click on Window -> Assistants -> Browser to open the Results Browser. Click on the psf file + icon to drop down & click on the tran folder to see all the signals from the transient output. :pwr is the instantaneous power consumed by the whole circuit. Double click to view the power waveform.



To invoke the calculator tool, click on Tools -> Calculator.

The calculator window shown below appears. Make sure Wave and Clip are selected.

Now switch back to the waveform window and left click the mouse once on the power waveform. Then switch back to the calculator window. It should look as shown below. The name of the waveform that you clicked on has appeared in the white box in the calculator.



Next, we will choose the operation to be performed on the waveform. To get the average power between 0 and 2ns, we first clip the waveform to the time interval of interest. To do this, click on the clip function in the list of functions towards the bottom of the calculator. That should result in a window similar to this:



Enter From = 0 and To = 2n in the fields. Then click on apply. Notice that the white box above is updated now with the clip function applied. Now this expression needs to be evaluated/plotted. To do so, click on Tools > Plot in the calculator window. Switch back to the waveform window. Now there is the clipped waveform, similar to this:



We now need to compute the average of this waveform. Switch back to the calculator window. If the clip function is still active in the bottom of the calculator, click on close. The white box in the calculator should now read something like:

clip(getData(:pwr ?result tran) 0 2n )

Select the average function from the list of functions in the calculator then click Apply.

Then click on Tools > Plot. This will print the average value in the white box in the calculator.

To select a different waveform and work on it in the calculator, simply go to the waveform window and click on the waveform of interest. The white box in the calculator will now be updated to that wave form.

Back to Top



Acknowledgement: Some parts of this tutorial have been borrowed from the Cadence Tutorial website at the University of Texas at Austin.

This tutorial has been updated September 2024 by Anthony Roberts. Much of the tutorial was based on Aaron Carman’s Youtube video on new GPDK045 provided by Cadence link here.
